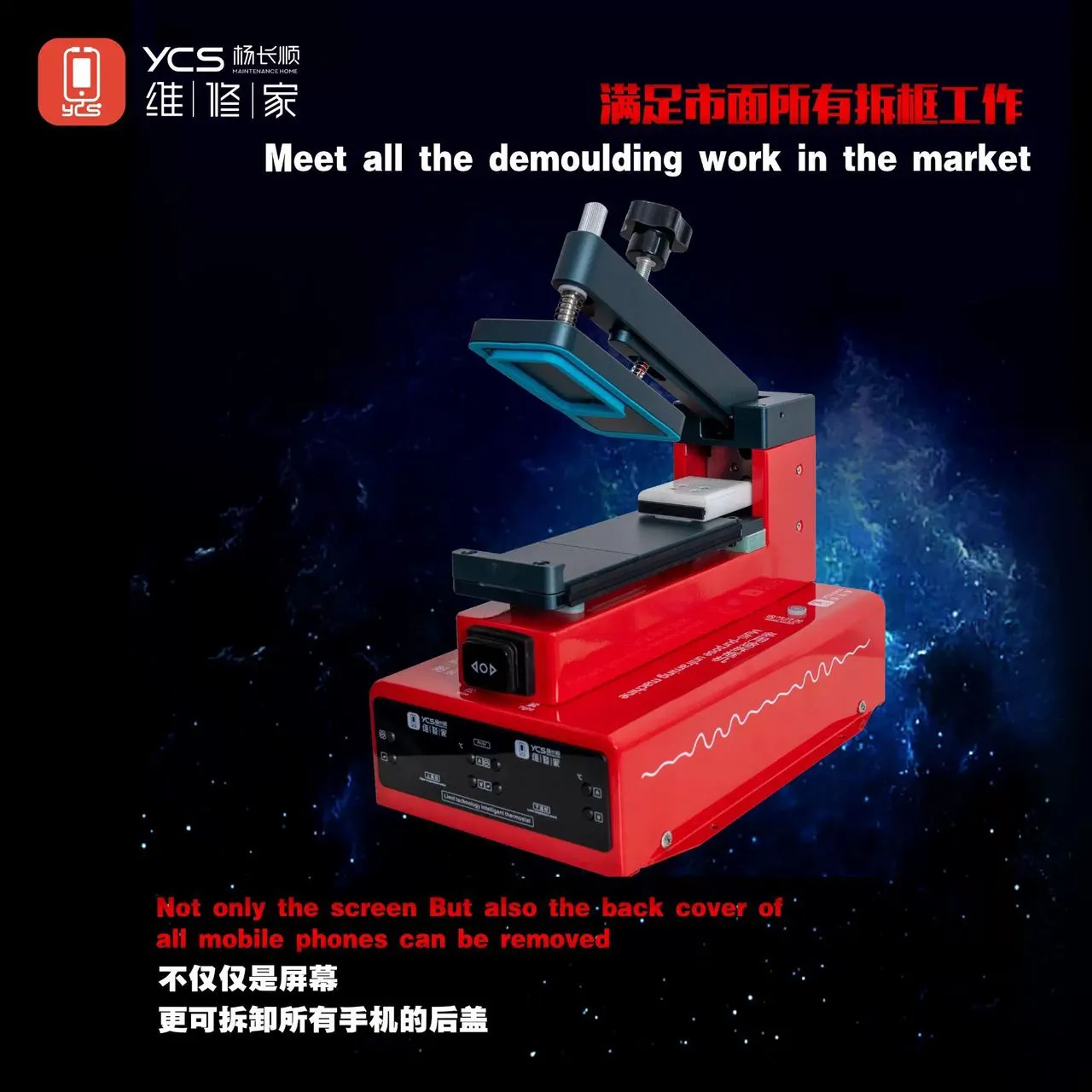

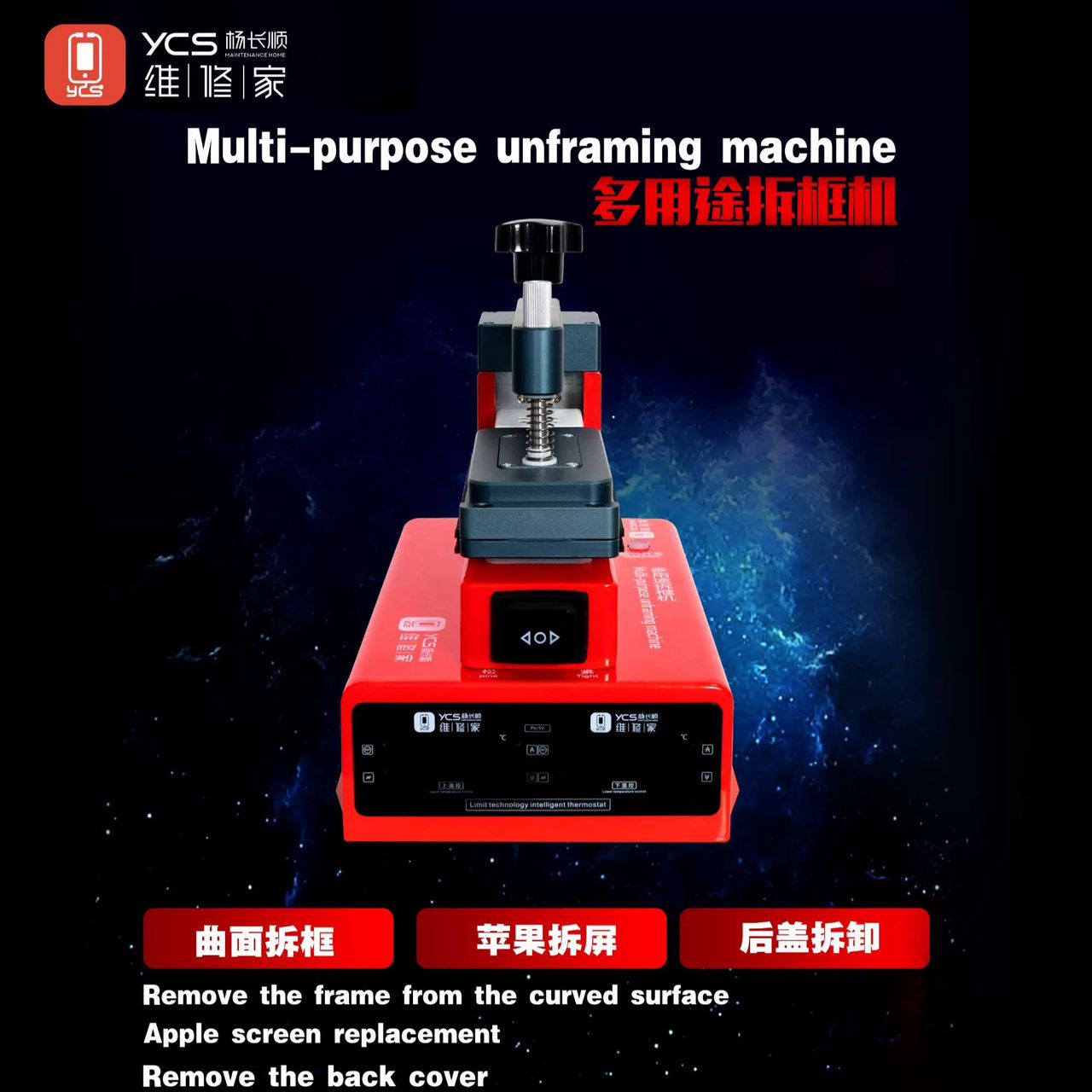

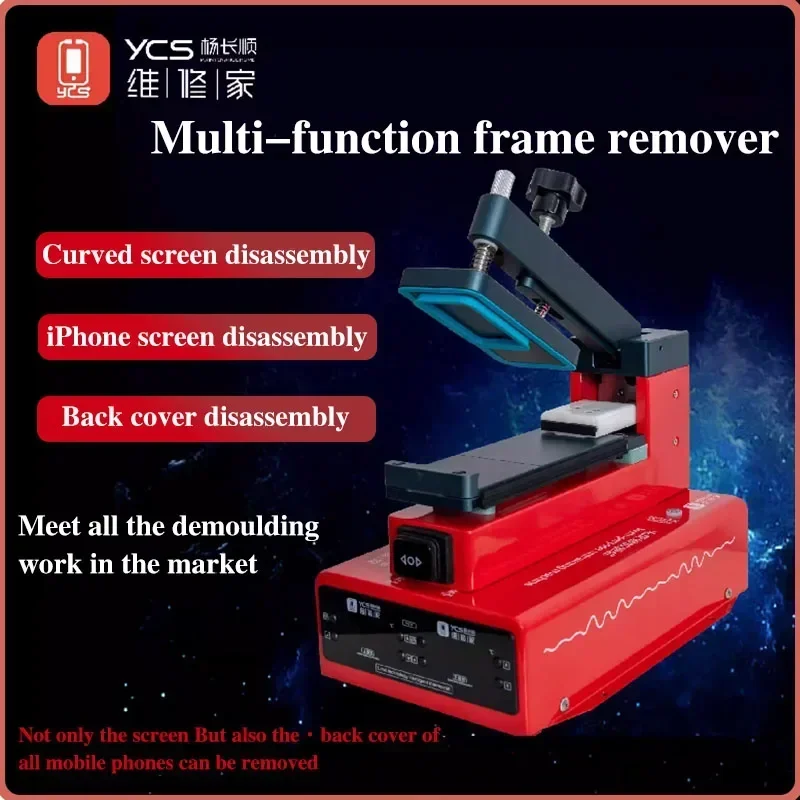

YCS Mobile Phone LCD Screen Separator Machine Curved/flat screen removal

The YCS Mobile Phone LCD Screen Separator Machine is a tool designed for phone repair, specifically for disassembling the screen from the body of a smartphone. YCS manufactures a range of models with varying features, but they all primarily use heat and vacuum suction to soften the adhesive and safely separate the screen.

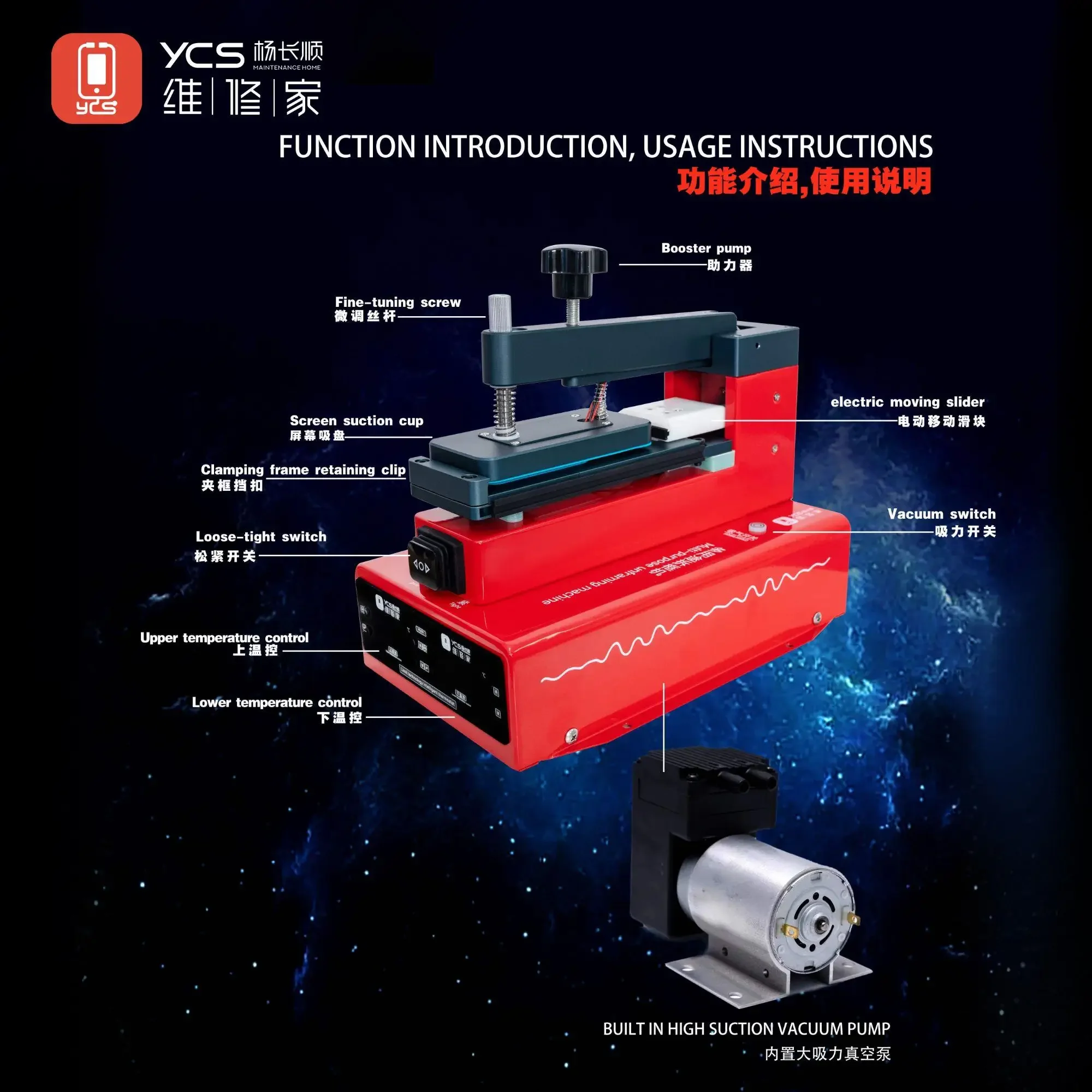

Key features

• Curved and flat screen removal: Modern machines from YCS are versatile and built to handle the different designs of both flat-screen phones and the more challenging curved-edge screens.

• Dual heating zones: Higher-end models may feature multiple heating zones to evenly distribute heat across the entire display, which helps to soften the adhesive without damaging the sensitive LCD or OLED panel.

• Strong vacuum pump: A powerful vacuum suction is used to firmly hold the phone or screen in place during the separation process, preventing movement and ensuring a clean and steady removal.

• Camera lens protection: Newer machines have a built-in "camera position avoidance system" or a universal hole to protect the camera lens during disassembly.

• Automated and intelligent features: Some YCS models offer smart features like AI voice control for hands-free operation and pre-set parameters for different phone models, which increases efficiency and reduces the risk of error.

• Electric clamp/frame removal: Some units combine screen separation with frame removal, using an electric clamp to facilitate the process for a more comprehensive repair solution.

How it works

The process generally follows these steps:

1. Placement: The mobile phone is placed on the heating platform of the machine.

2. Heating: The heating table warms up to a controlled, adjustable temperature (for instance, 40°C to 80°C) to soften the strong adhesive holding the screen to the frame.

3. Vacuum suction: The built-in vacuum pump activates, creating a strong suction that keeps the device securely in place on the machine.

4. Separation: Once the adhesive is pliable, the user can use a specialized tool or the machine's mechanism to lift and separate the screen from the phone's body.

5. Protection: The machine's design and features, like the camera lens protector, help ensure that sensitive components are not damaged during disassembly
