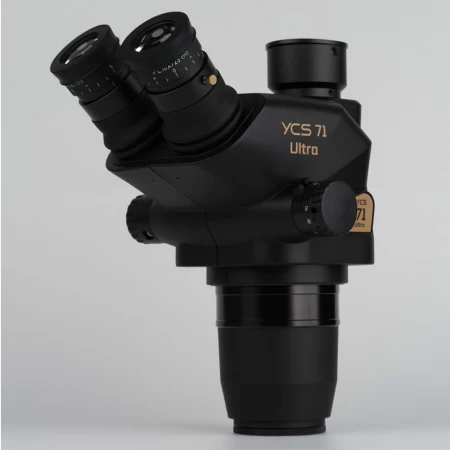

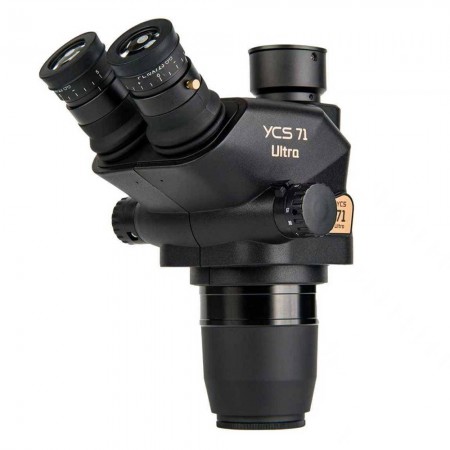

Ycs 71 Ultra Trinocular Microscope Clearest view 6.7x45
₱17500.00
Out of stock
The YCS 71 Ultra is a trinocular stereo microscope designed for electronics repair, specifically for tasks like soldering phone motherboards and inspecting PCBs. It features an ergonomic design suitable for long working sessions and includes functions for repeatable magnification settings.
Key features
Magnification: Offers a standard continuous zoom range of 6.7× to 45×, which can be expanded to a much higher magnification (e.g., up to 225× with optional auxiliary lenses).
Optics: Includes wide-field, flat-field eyepieces (PL10×/22 mm standard) with an adjustable diopter for clear, undistorted images across the field of view. It also has a 45° tilted, 360° rotatable viewing head for ergonomic comfort.
Beam splitter: The trinocular head has a beam splitting ratio of 20% to the eyepieces and 80% to the camera port. This allows for simultaneous visual observation and image or video capture.
Fixed magnification: The microscope has a "fixed-frame" and "magnification limiter" function. This allows the user to lock in a specific magnification setting for repeatable adjustments without having to recalculate.
Working distance: The standard working distance is 110 mm, providing ample space for tools like soldering irons during use.
Ergonomics: Features like a light, comfortable hand-wheel and a high eyepoint design help reduce user fatigue during long periods of operation.
Applications
The
is used by professionals and hobbyists in a variety of fields:
Electronics repair: Ideal for soldering, inspection, and rework of printed circuit boards (PCBs) and tiny components on phone and computer motherboards.
Assembly: Suitable for assembling LCDs, displays, and integrated circuits (ICs).
Research and education: Used in scientific laboratories, educational settings, and for research purposes.
Other detailed work: Also applicable for examining calligraphy, paintings, or other delicate objects in fields like archaeology and art restoration.
PACKAGE INCLUDES
YCS 71 ULTRA HEAD
CHOICE OF CTV LENS OR YCS RINGLIGHT (please put on notes)
