Sugon T60 Soldering Station
₱11500.00
Out of stock
The
Sugon T60 soldering station
is a precision soldering station designed for electronics repair, particularly for mobile phone and BGA/PCB rework. A notable feature is its dual-station functionality, which can be achieved with the optional
Sugon TJ8 extender
.
Specifications
Model:
SUGON-T60
Power: 120W (up to 160W peak power)
Input Voltage: AC 100V/AC 220V 50/60Hz
Temperature Range: 100°C–450°C (212°F–842°F)
Heating Time: Fast heating, reaching tin-melting temperature in approximately 2 seconds.
Temperature Control: Uses a programmable chip for fast and accurate temperature regulation, unlike traditional AC voltage control.
Display: Digital display.
Key features

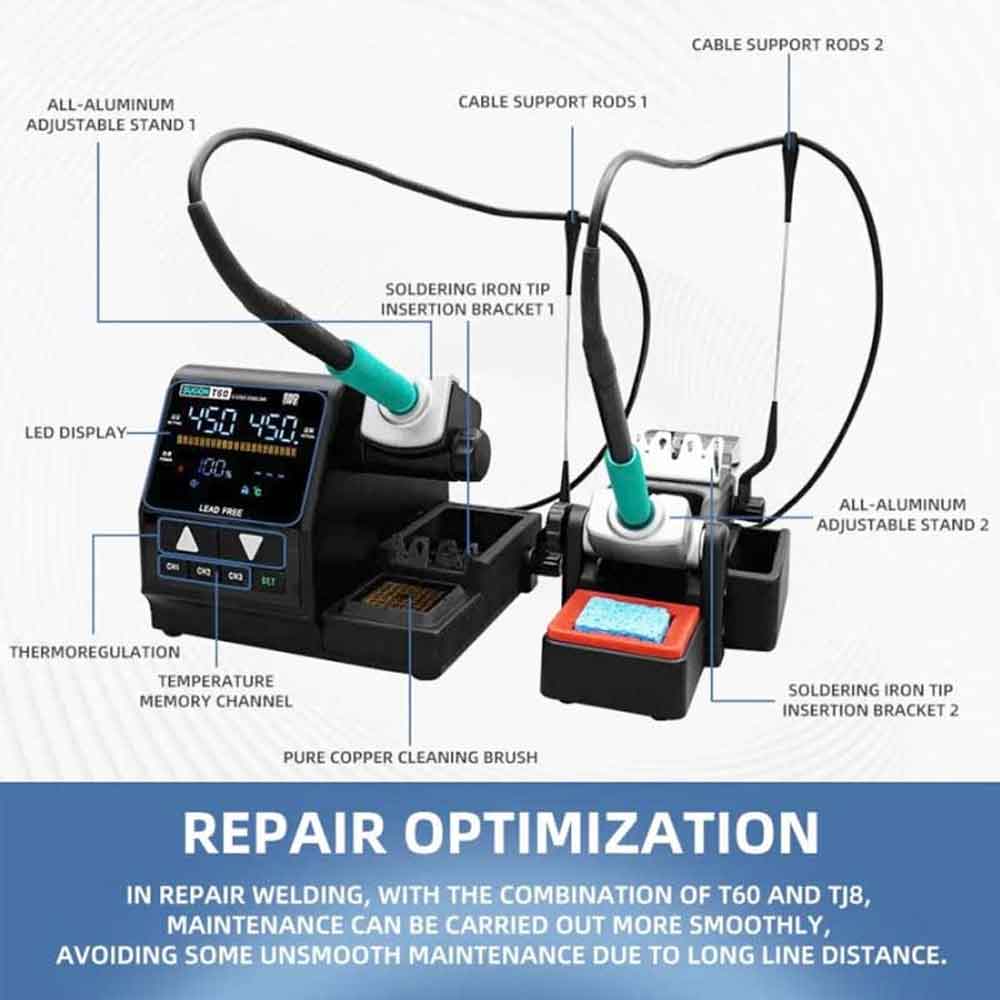

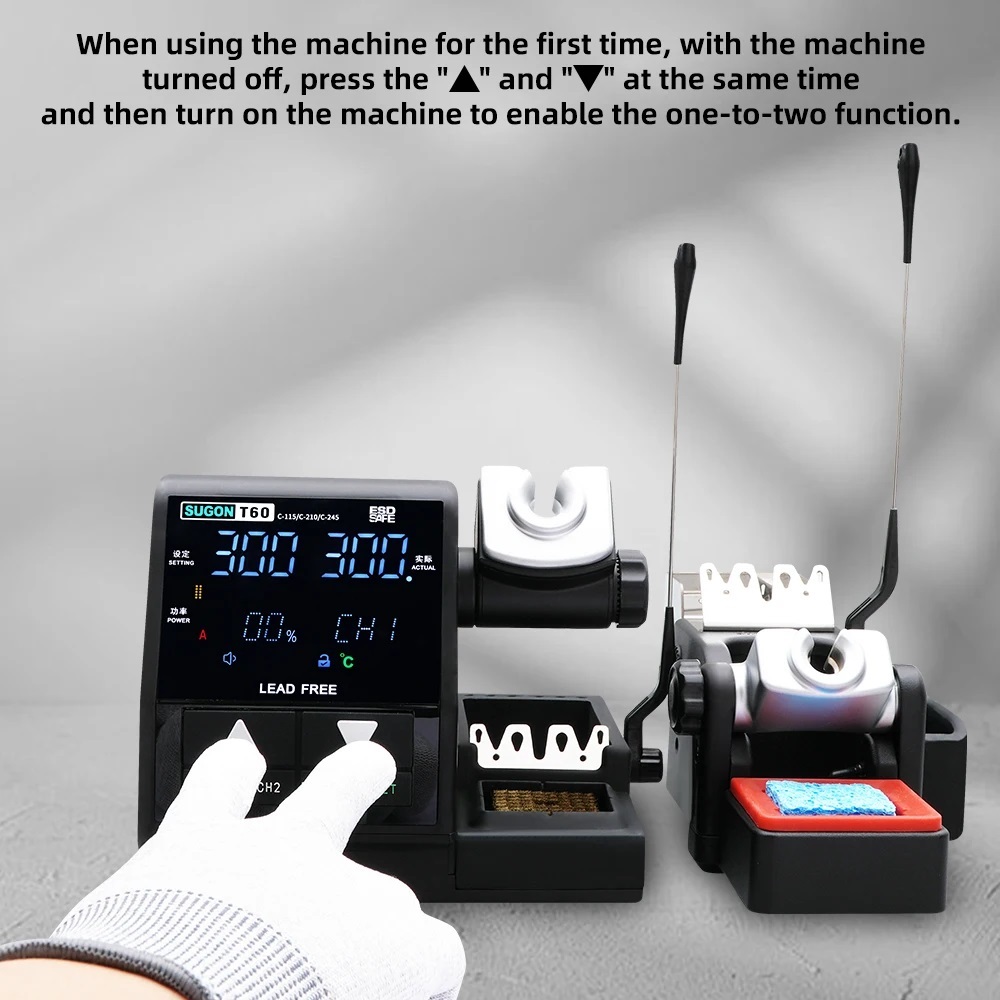

Dual-station mode: When paired with the optional TJ8 extender, the
T60
functions as a dual-station rework platform. However, only one handle can be actively heating at any given time.

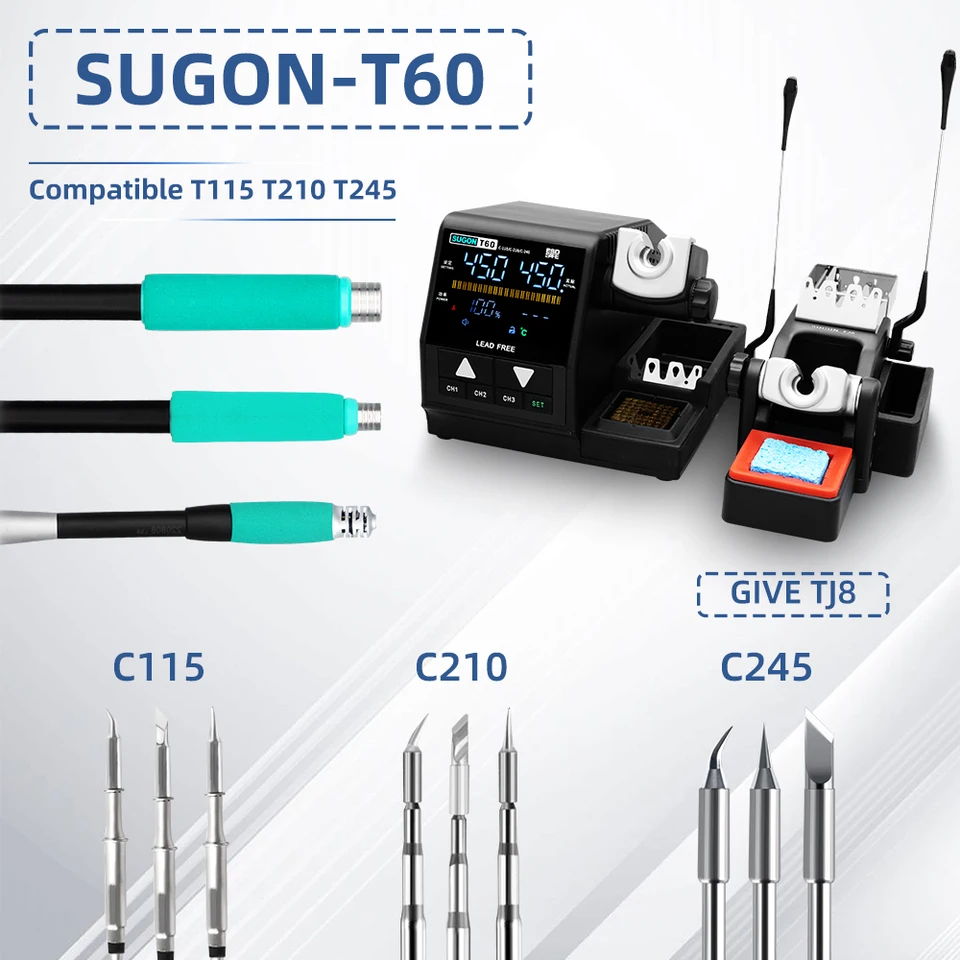

Handle compatibility: The station is compatible with multiple handle types, including T115, T210, and T245 handles, providing flexibility for different soldering tasks. The T245 handle is also compatible with C470 series heating cores for larger solder joints.
Auto sleep function: The station detects when the handle is placed in its stand and automatically enters sleep mode to extend tip life. It heats back up instantly when the handle is lifted.
Adjustable handle bracket: The angle of the handle bracket can be adjusted by 45° to better suit your workflow.
Preset memory temperatures: The device includes preset memory functions for frequently used temperatures.
Swappable heating core box: The station has a plug-in box design that allows for quick and tool-free replacement of the heating core.
