Mijing SG22 Solder oil Uv 3 seconds to cure
₱180.00
Out of stock

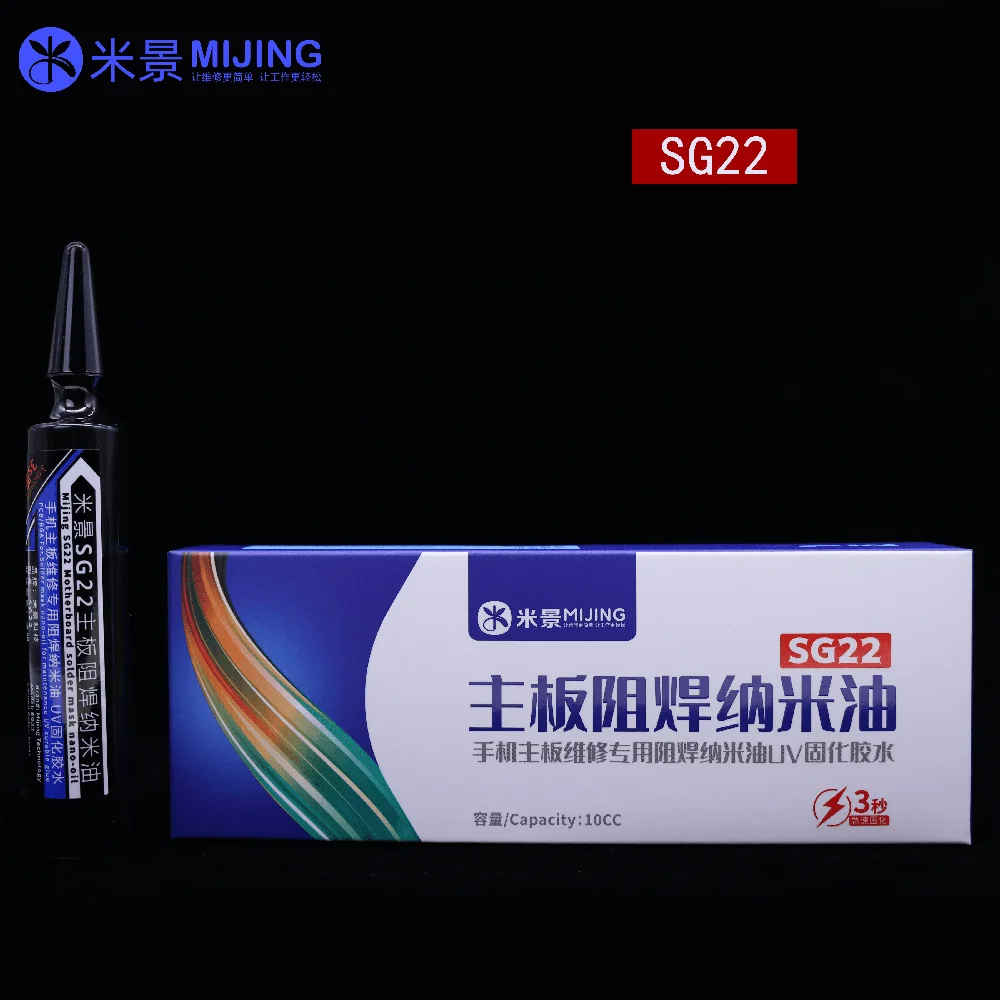

Mijing SG22 UV curing nano oil is a type of solder mask used for repairing and protecting mobile phone motherboards and other circuit boards. It is known for its fast curing time of about 3 seconds when exposed to a UV light.
Key features and uses
Nano oil formulation: Its nano-oil composition provides high temperature resistance and strong adhesion.

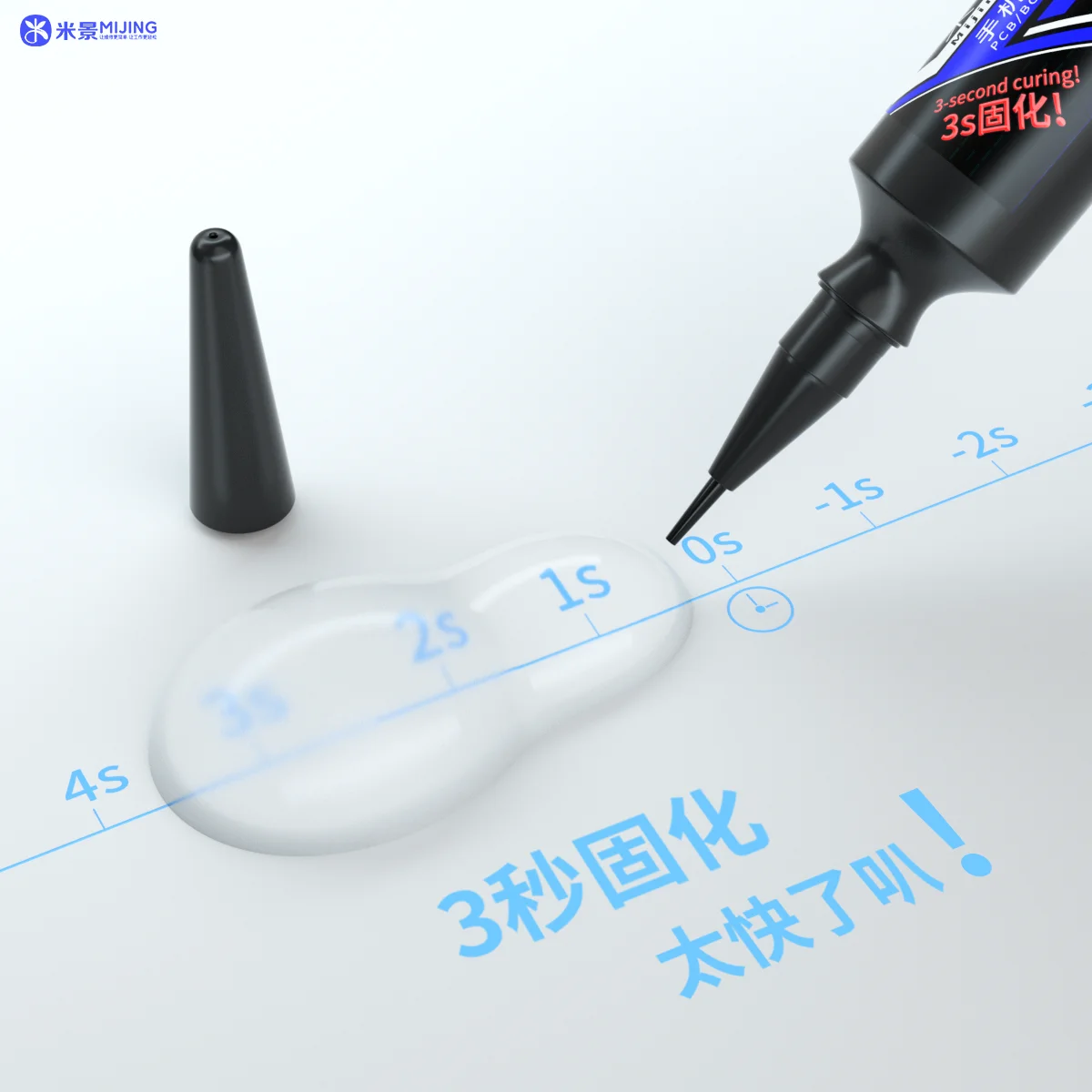

Quick curing: The "3-second" claim refers to how fast the substance solidifies under a UV lamp, speeding up repair work.
Insulation: It insulates and protects electronic components, safeguarding them from moisture, oxidation, and short circuits.
PCB repair: It is ideal for fixing "flying wires" (jumpers), securing solder pads, and repairing areas where the original solder mask has peeled or been damaged.
Anti-soldering protection: The hardened layer prevents solder from bridging across traces, ensuring stable electrical connections.

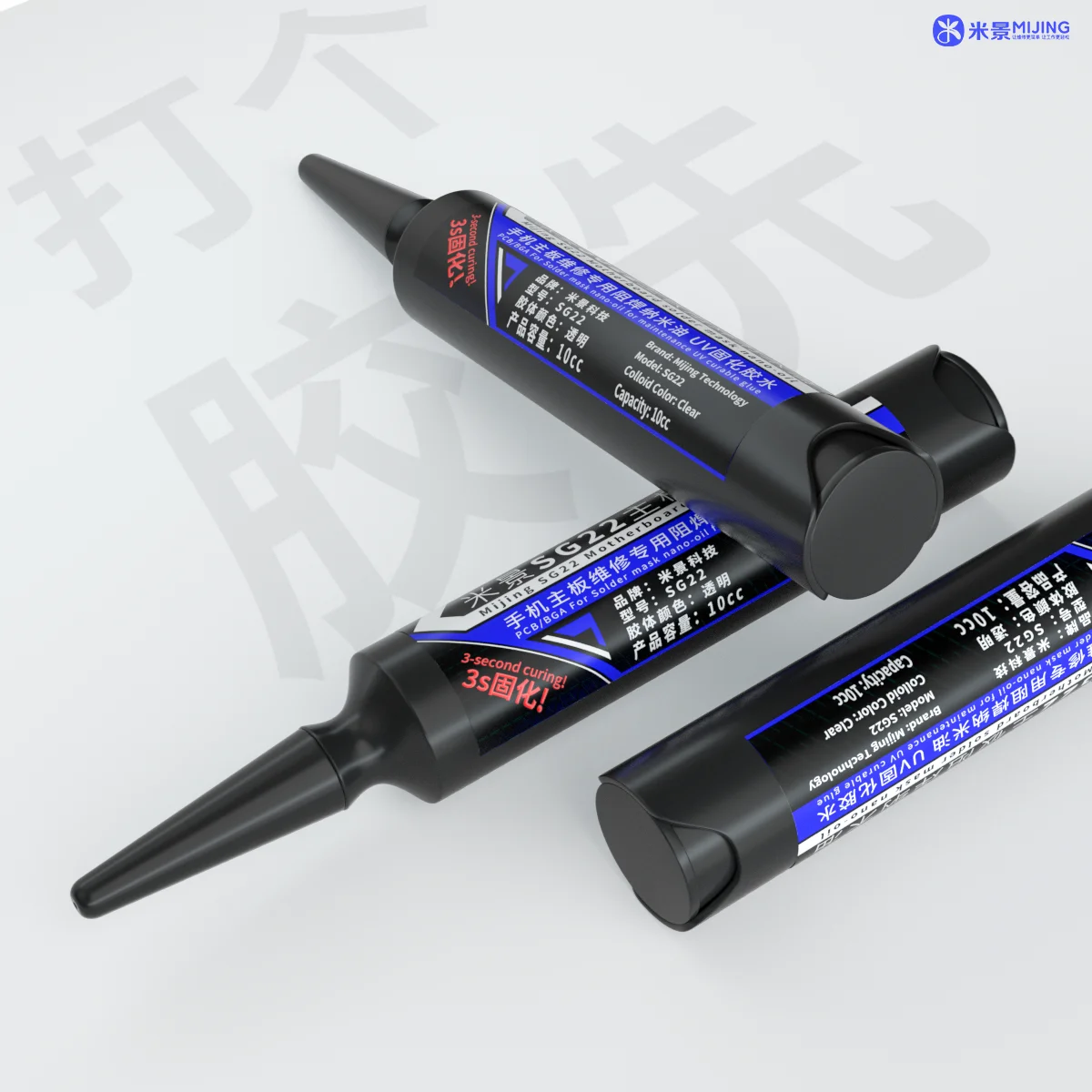

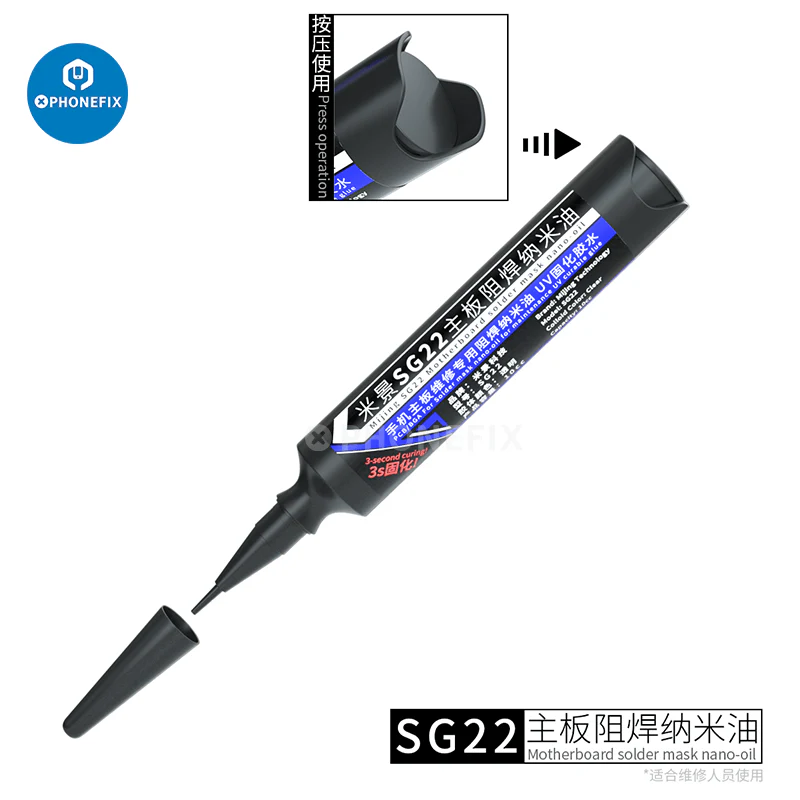

Precision application: The product typically comes in a syringe with a sharp nozzle, allowing for precise application on small components like chip pins and solder pads.
How to use Mijing SG22
Clean the area: Prepare the work area by ensuring the PCB is clean and free of flux residue or other contaminants. Using isopropyl alcohol (IPA) is a common method.
Apply the nano oil: Squeeze a small amount of the SG22 from the syringe onto the spot that needs repair, such as a jumper wire or damaged trace.
Spread the oil: Use a needle or another fine tool to spread the oil into a thin, even layer. Do not apply too much, as this can increase the curing time.
Cure with UV light: Expose the applied oil to a UV light. Many technicians use a UV flashlight, but a larger UV lamp can also be used. The product cures very quickly, with some vendors claiming a 3-second cure time with the right light.
Test the cure: The final result should be a durable, insulating layer. If the mask feels tacky or soft, continue curing it with the UV light. Some users also report using a little heat from a hot air station along with the UV light to ensure a full cure.
