Mechanic T810 Tail Plug Test Board for Charging
₱150.00
Out of stock

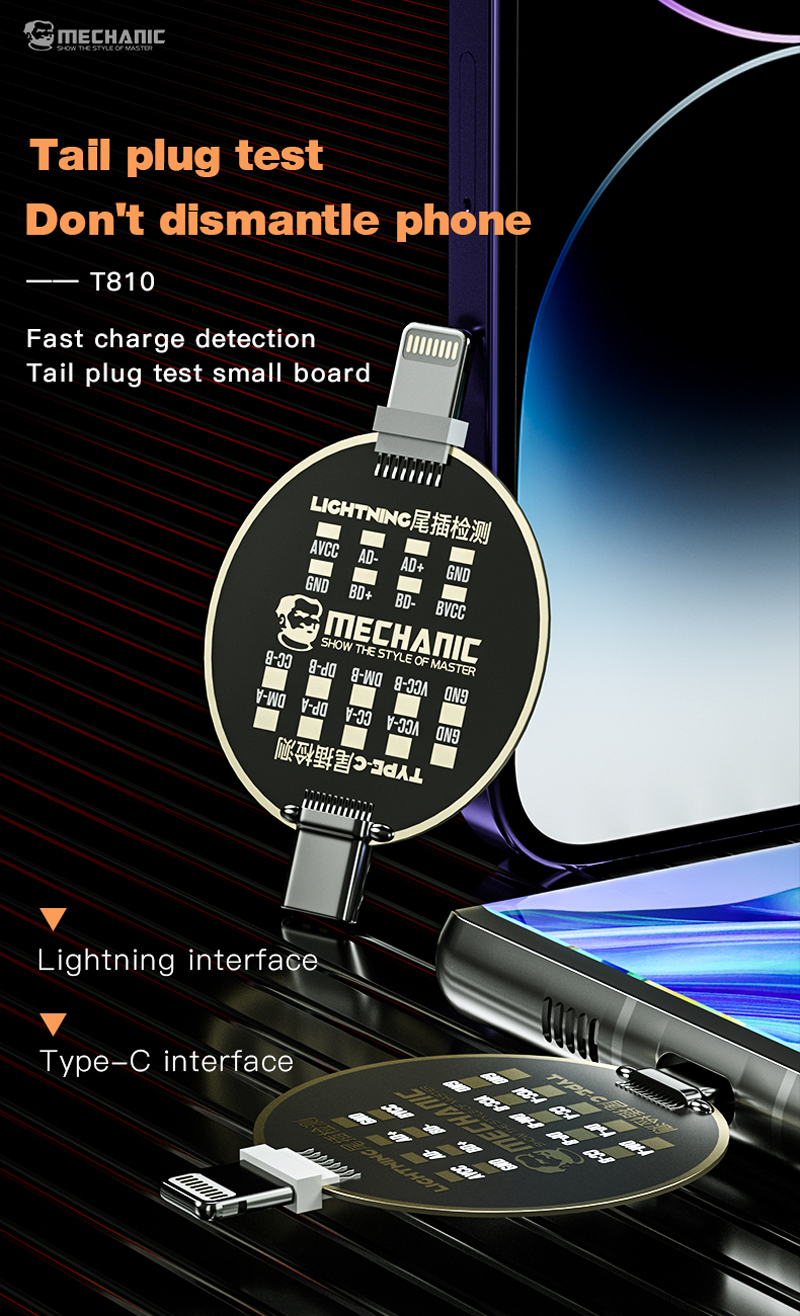

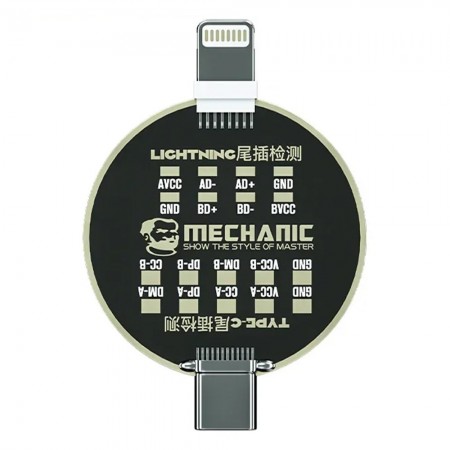

The Mechanic T810 is a tail plug test board used by phone repair technicians to diagnose charging issues on mobile devices without disassembling them. It is compatible with both Apple and Android phones and features Lightning and USB Type-C connectors.
How it works
The
Mechanic T810
allows technicians to check the charging functionality and identify charging-related faults by connecting it directly to the phone's charging port.
For diagnosis
Quickly identify problems: By plugging the test board into the phone's charging port, technicians can quickly determine if a "no charging" or "slow charging" issue is caused by the tail plug (charging flex) or a component on the phone's main logic board.
Isolate motherboard issues: The board can help pinpoint the exact test points for data lines (DP, DM) and charging lines (CC) on the motherboard. This saves time by indicating if the fault lies deeper than the charging port.
For fast-charging detection
Verify fast charge function: The
has a fast-charge detection feature to confirm if the charging port is correctly communicating with the charger to initiate a fast-charging protocol.
Key features
Multi-device compatibility: Comes with detachable connectors for both Apple Lightning and Android USB Type-C ports, covering a broad range of devices.
Non-intrusive testing: Allows for testing the charging function without the need to open the phone, minimizing the risk of damage during initial diagnosis.
Portability: Its compact, lightweight, and detachable design makes it a convenient tool for on-the-go repairs.
