Mechanic T12 Pro Solder Station Anti-static Smart Digital Fast Heating Station
₱1800.00
Out of stock

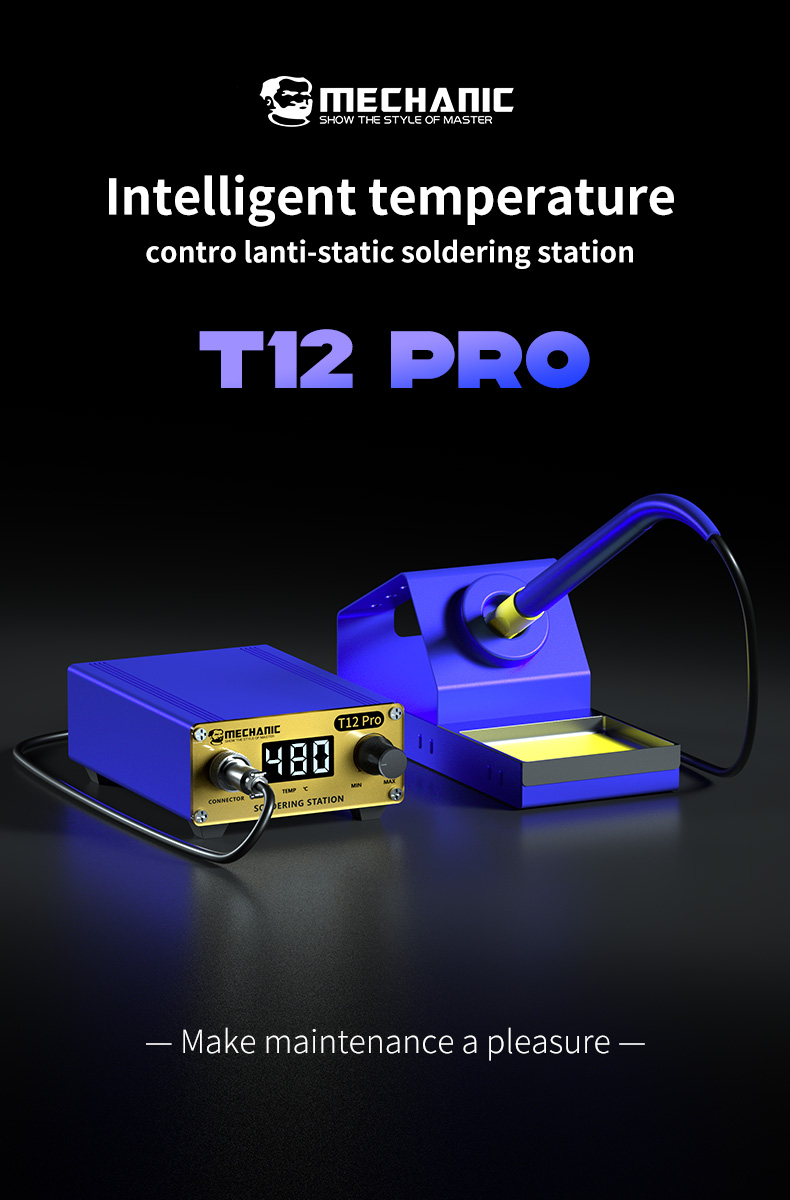

The Mechanic T12 Pro is a compact, intelligent soldering station known for its fast heating capabilities, anti-static design, and digital temperature control. It is a popular, budget-friendly option for mobile phone repair and electronics work. The station uses T12-style tips, which are praised for their rapid heat-up time and high thermal mass.
Key features

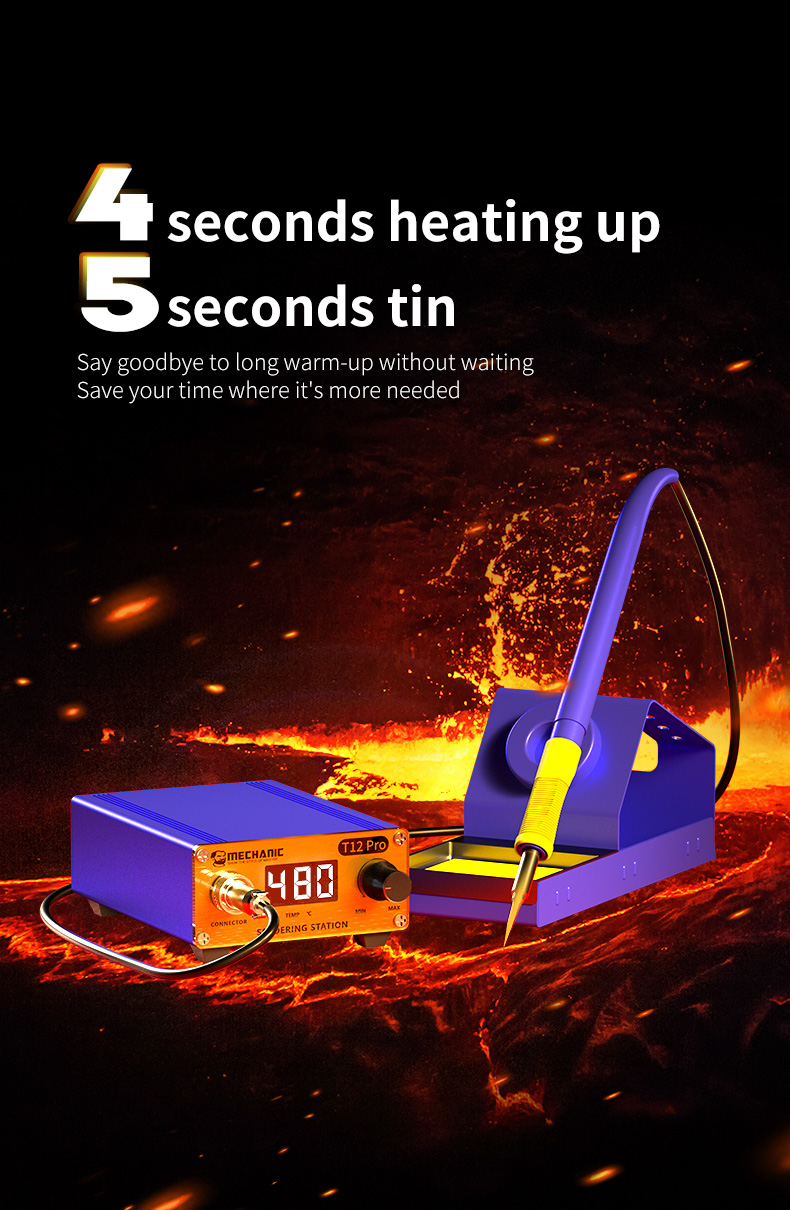

Rapid heating: The station can reach its operating temperature and melt tin in as little as 4–5 seconds. This fast thermal recovery prevents heat loss when soldering large components.

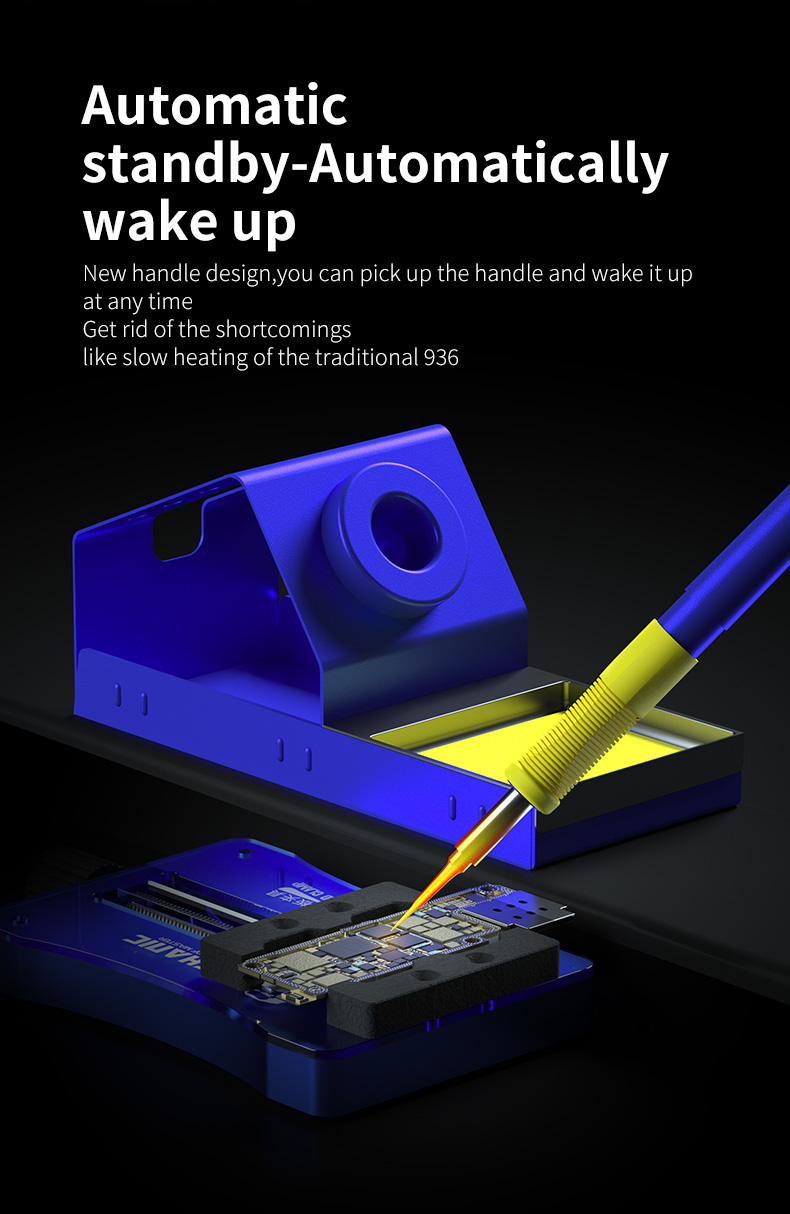

Smart and automatic functions: Features include an auto-sleep, standby, and shutdown mode that activates when the handle is placed in the included stand. This conserves energy and extends the life of the soldering tip. Picking up the handle automatically wakes the station.
Precise digital temperature control: An LED digital display shows the real-time temperature, which can be precisely adjusted by the user in a range from 200°C to 450°C.
Anti-static design: The soldering station is designed to prevent electrostatic discharge (ESD), protecting sensitive electronic components during repair.

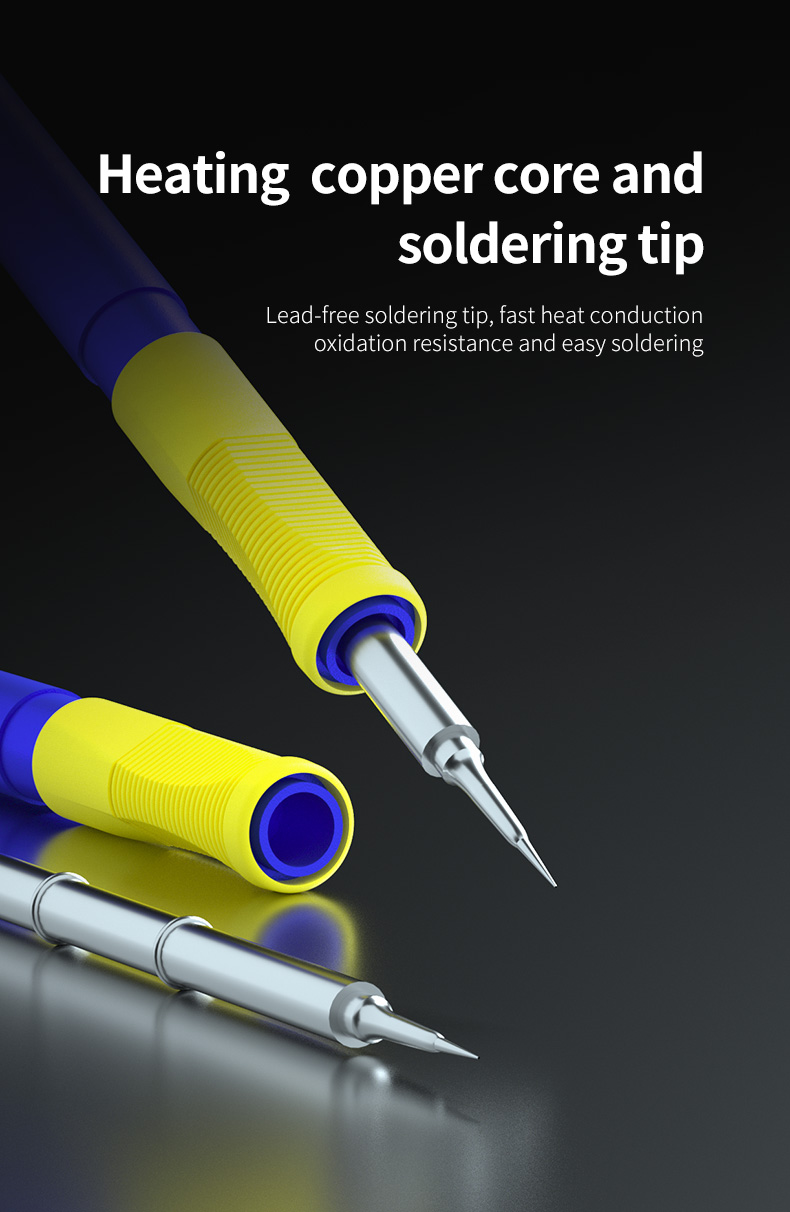

Integrated heating element: T12-style tips combine the heating element, temperature sensor, and tip into a single cartridge. This design improves heat transfer efficiency and temperature stability.
Lightweight and compact: With its small footprint and portable design, the T12 Pro is suitable for use in a variety of workspaces.
Specifications
Power: 72–75W.
Temperature range: 200°C to 450°C.
Input voltage: AC 100-240V (some regional versions may specify 220V).
Included accessories: The package typically includes the main unit, a T12 handle, a soldering iron stand, a power cable, and one or more T12-series soldering tips.
Considerations
Build quality: While excellent for the price, the build quality of some budget-friendly Chinese T12 stations, including the handle, can be lower than high-end stations like a Hakko.
Grounding: Some users have reported that the chassis of certain Chinese-made T12 stations is not properly grounded out of the box, which can be a safety concern. Experienced users may perform a simple modification to fix this.
Firmware: Some T12 stations, particularly the more advanced KSGER models, use custom firmware (e.g., STM32) that offers advanced features but can be confusing for beginners. The
is typically a simpler, more user-friendly version.
