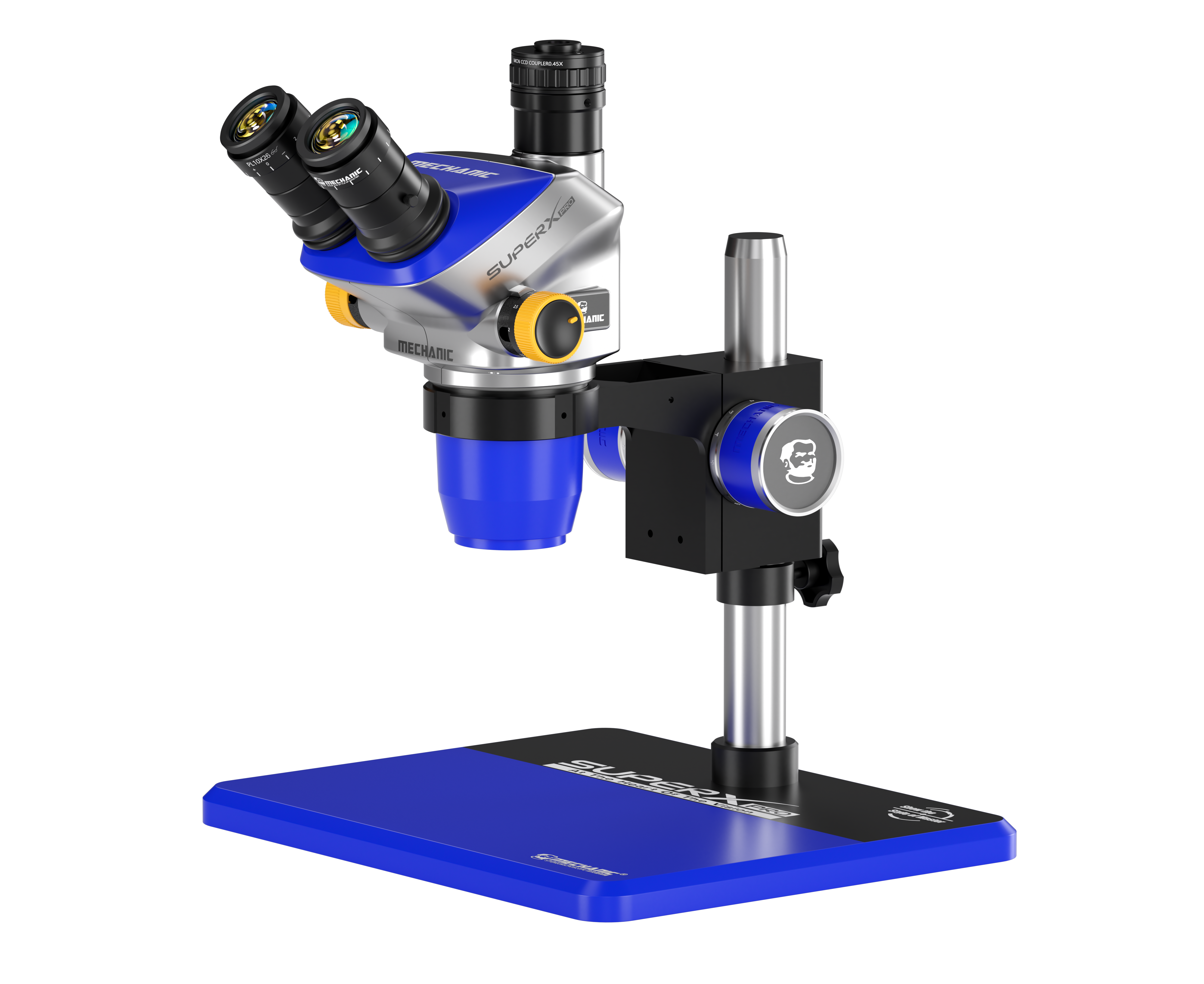

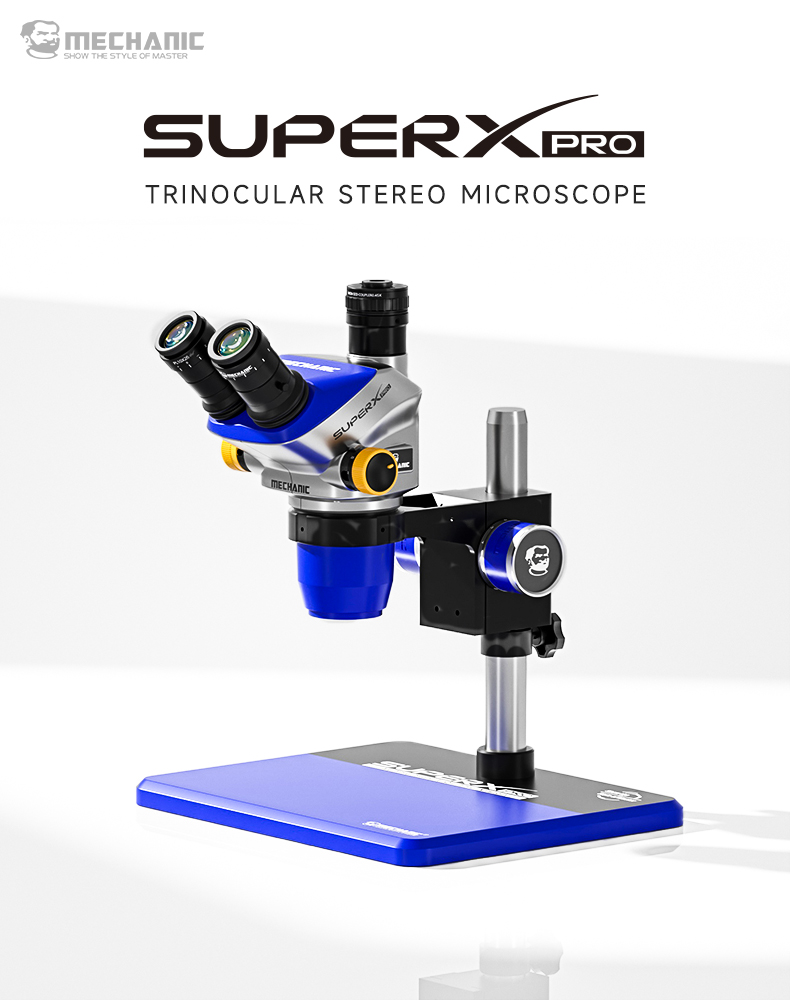

Mechanic SUPER X PRO B11 SCOPE

The Mechanic Super X Pro-B11 is a trinocular stereo microscope designed for detailed, industrial-grade work, such as repairing mobile phone motherboards and other small electronics. It features a continuous zoom system and high-definition imaging capabilities.

Key features

• Magnification and zoom: Offers a continuous zoom magnification of 6.5X to 52X, providing a wide range for inspecting intricate details. Some retailers list the base model with a 6.7X-45X range, but the "Pro" version typically has a wider 6.5X-52X range.

• Optics:

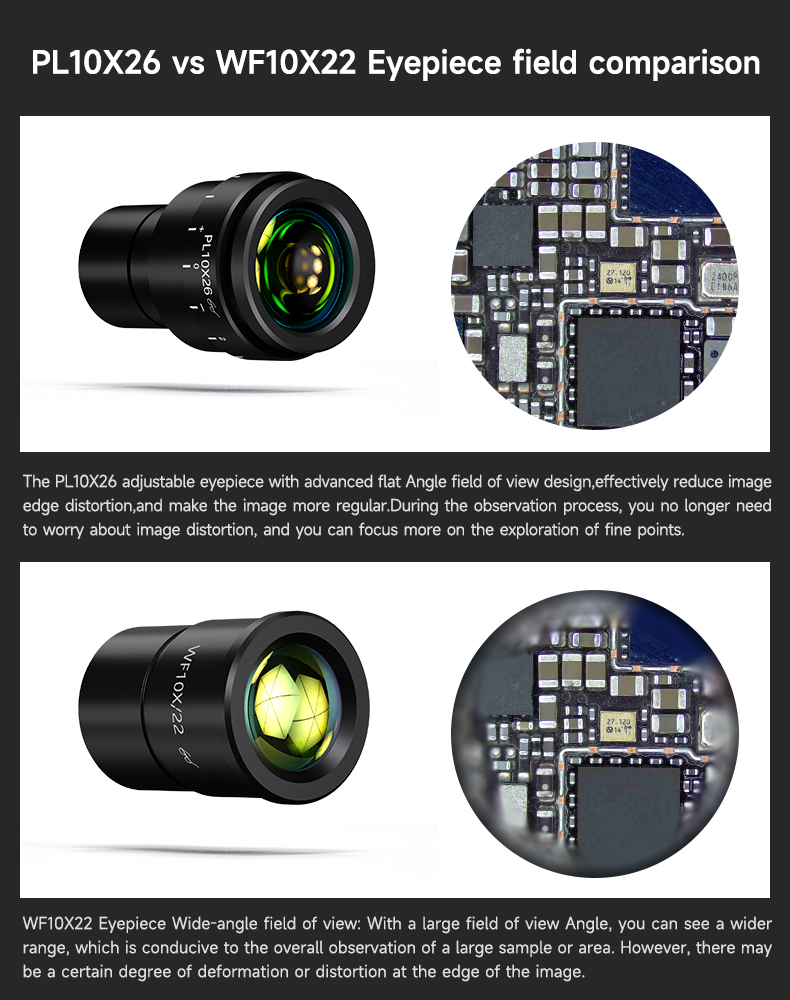

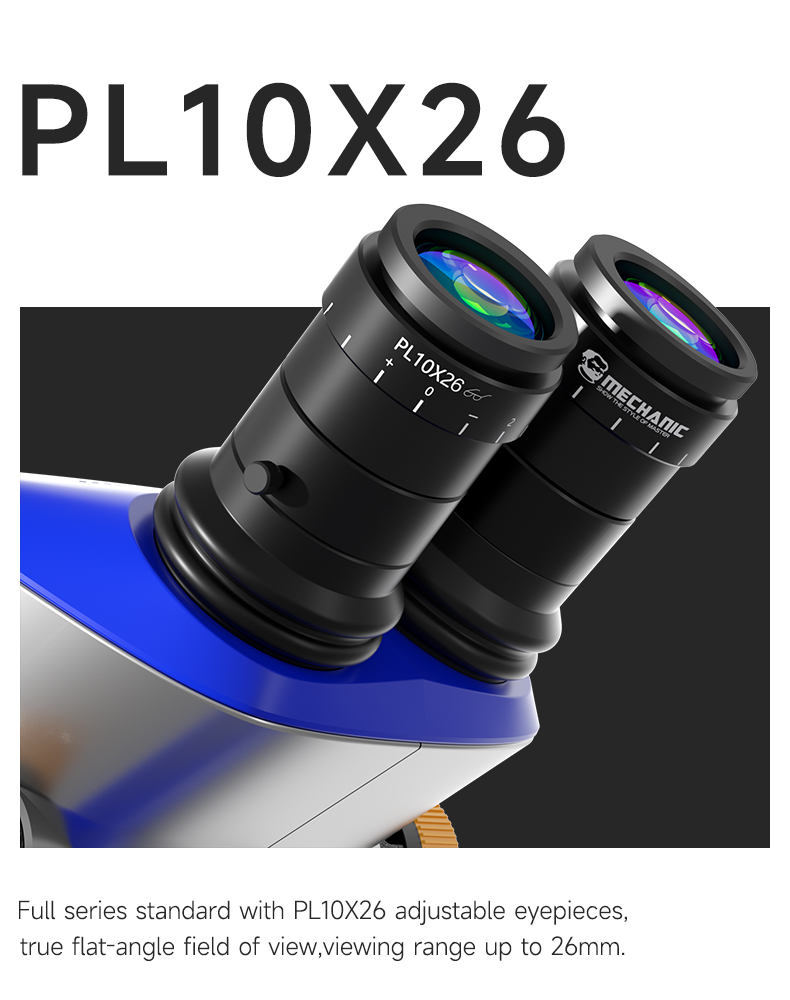

  • Equipped with PL10X26 adjustable eyepieces for a true flat-angle field of view.

  • A trinocular port allows for the addition of a high-definition camera for photography, video, and digital display.

  • An optional CCD 0.45X CTV adapter can be used to improve image quality for the camera.

• Ergonomics and design:

  • Features a comfortable 115mm working distance, which provides ample space for repairs and reduces operator fatigue.

  • The microscope head has a 45-degree incline and can rotate 360 degrees for flexible observation angles.

  • It is built with a robust, anti-drop aluminum alloy body and a dust-proof design to protect internal components.

• Convenience and technology:

  • Includes a touch-type gear-based magnification design for smooth adjustments.

  • An included or optional LED ring light provides adjustable brightness for consistent, shadowed lighting.

• Purpose: The scope is primarily marketed to professionals for electronics and industrial repair, observation, and research. It is an ideal tool for inspecting printed circuit boards (PCBs), BGA chips, and SMD soldering.

What's in the box

A typical package includes the trinocular microscope head, a stand (such as the B11 column type), PL10X26 eyepieces, and a dust-proof mirror. Optional accessories, such as a camera, can be bundled with the kit.
