Mechanic Smart Eye Advance Trinocular Microscope

₱15000.00

Out of stock

Several "Mechanic Smart Eye" trinocular microscopes are available, primarily designed for the electronic and mobile phone repair industry. The name refers to a series with ergonomic features, and the "Advance" model likely refers to a more feature-rich version, such as one with a 4K camera. Key features include adjustable eyepieces, ergonomic design for comfortable use, and high-quality optics for clear and sharp images.

Notable "Smart Eye" models

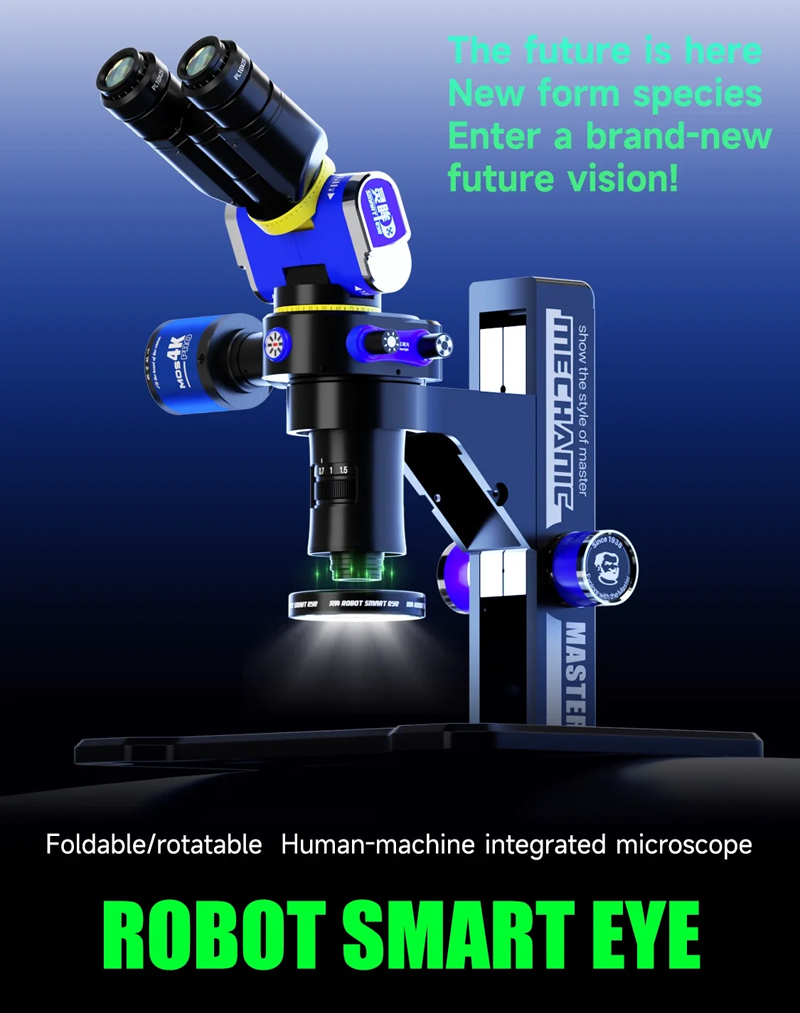

Mechanic Robot Smart Eye Foldable Microscope

This model features a foldable and rotatable design, which is a key aspect of its "Smart Eye" ergonomics, allowing for flexible viewing angles and reduced user fatigue during long work sessions.

Key features:

Magnification: 7X-45X continuous zoom magnification, suitable for intricate soldering and component inspection.

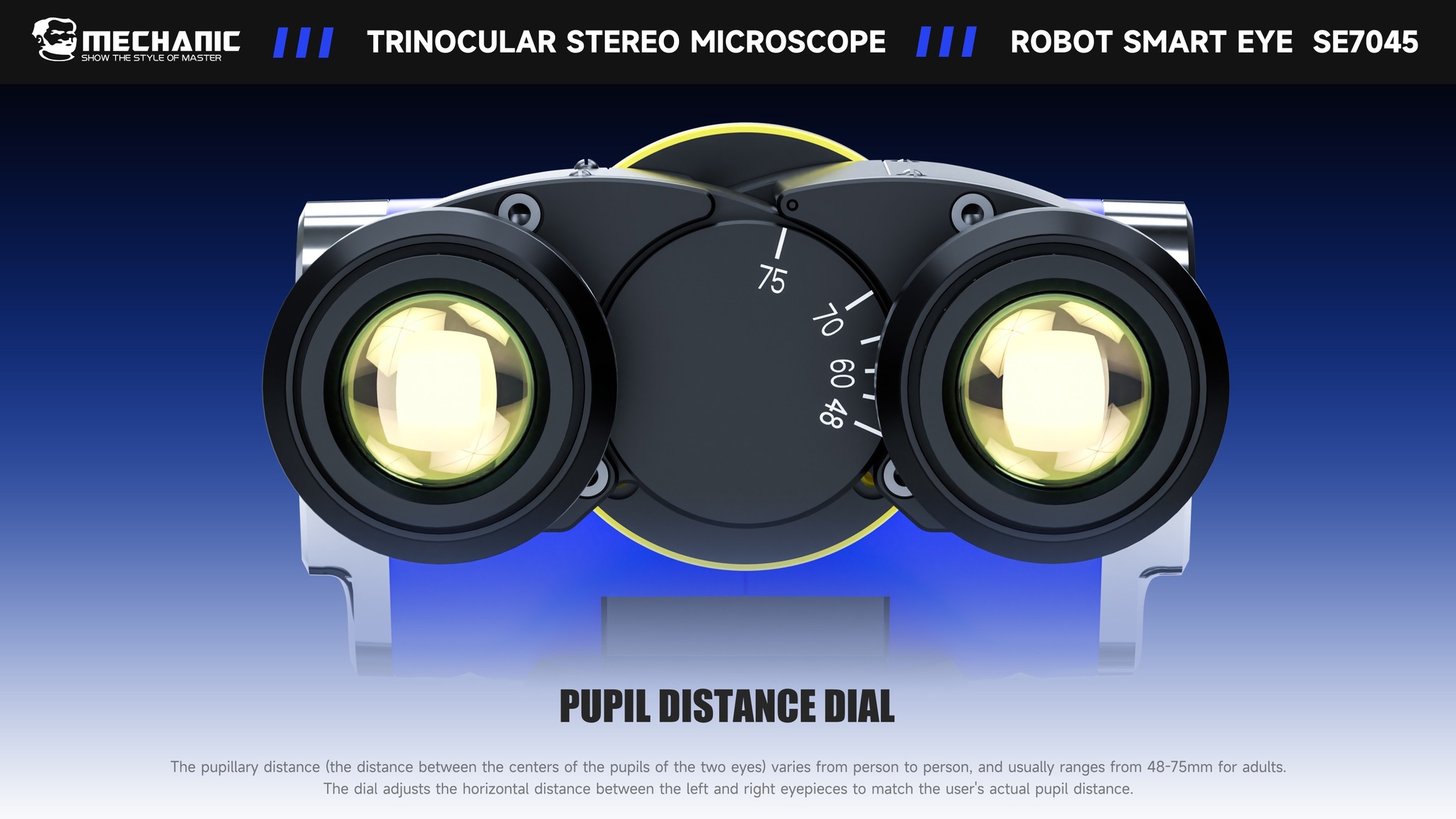

Ergonomics: The unique "human-machine integrated" foldable and rotatable head can tilt 15° left/right and 50° up/down to minimize strain.
Camera integration: Often includes or is available with a Mechanic MOS 4K PRO camera. The camera sensor is a 1/1.8 Sony CMOS IMX678, capable of outputting 4K video at 30fps and 1080P video at 60fps via HDMI.

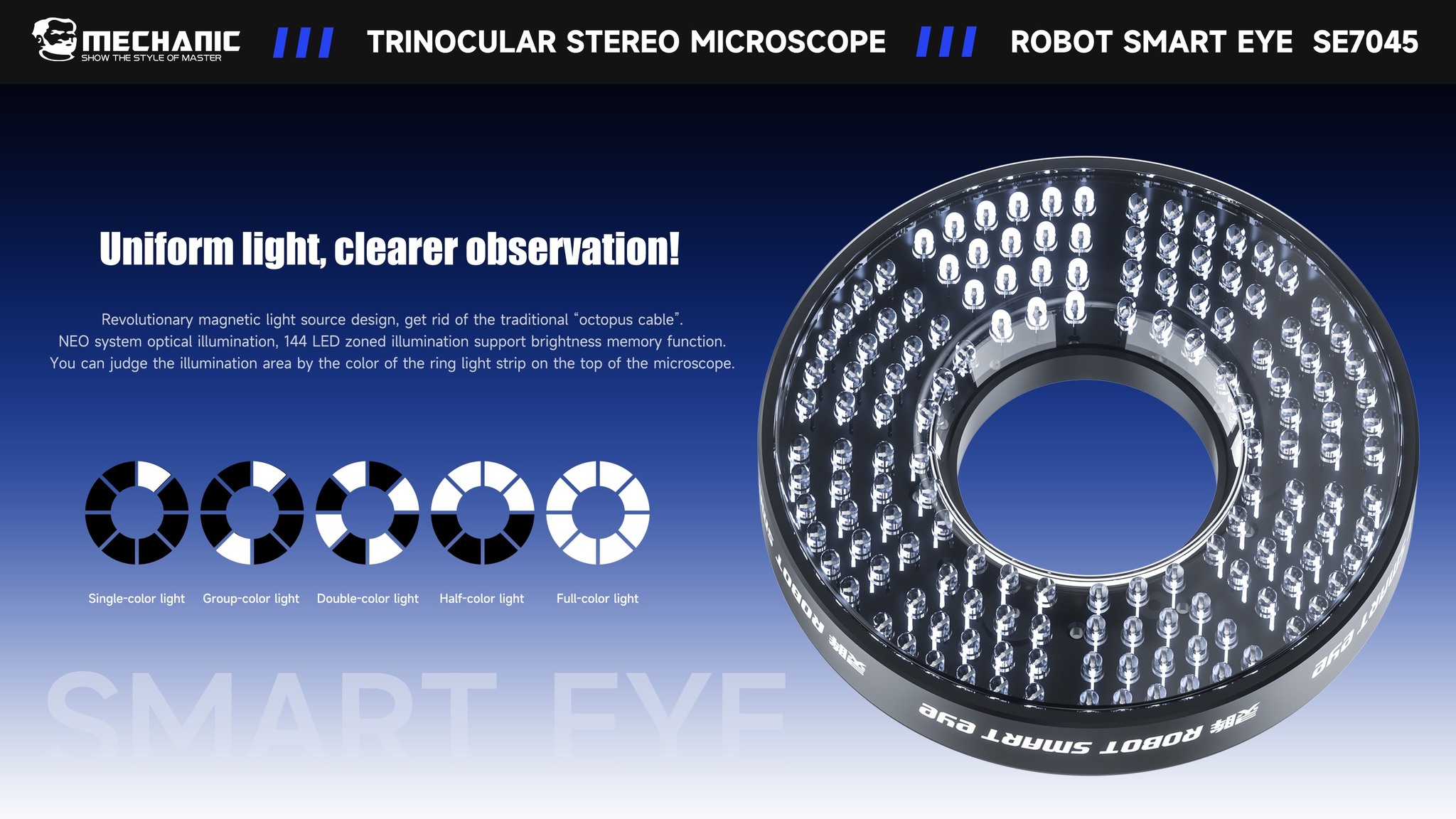

Illumination: A magnetic 144-LED ring light provides zoned lighting and features a brightness memory function.

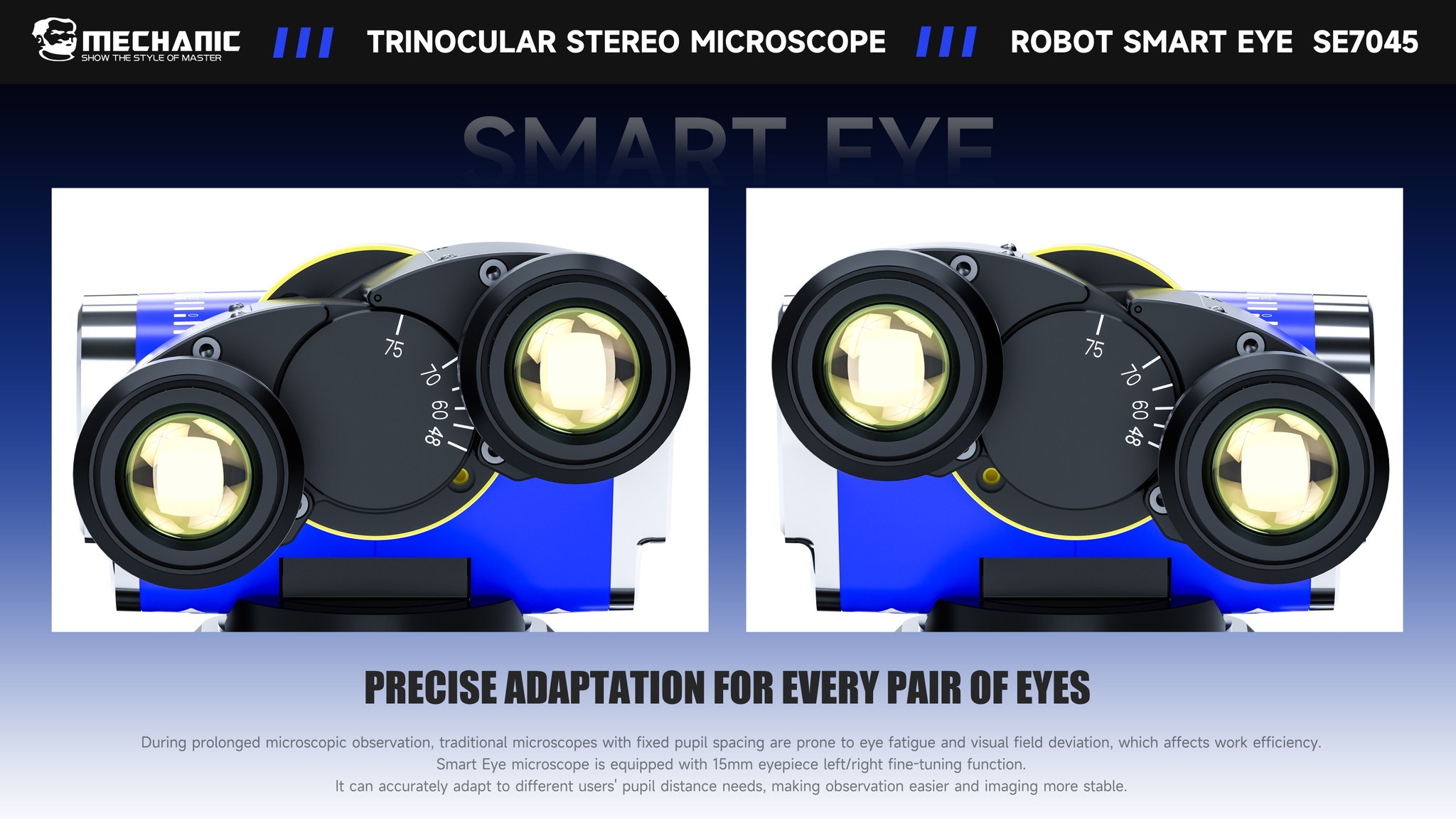

Eyepieces: Includes adjustable PL10X/25mm eyepieces designed for a flat field of view, which reduces edge distortion.
Base: Options may include a smaller standard base or a larger aluminum alloy base.

Mechanic MC75T Trinocular Stereo Zoom Microscope

This model is a strong alternative, often paired with a high-definition camera and a variety of bases.

Key features:

Magnification: 7X-45X continuous zoom.
Optics: High-resolution, sharp stereo images with a wide field of view.
Ergonomics: The 45-degree inclined trinocular head swivels 360° and has adjustable interpupillary distance (54-76mm).
Camera integration: Frequently sold with a DX-230 23MP 1080P HD camera, which supports HDMI, USB, and TF card output.
Illumination: Includes a 56-LED adjustable light source.
Working distance: A generous working distance of 100mm, which can be extended to 287mm with auxiliary lenses.

Factors for choosing a model

When selecting a "Smart Eye" microscope, consider the following:

Camera resolution: If you need to record high-quality, detailed repair work, a model with the 4K camera (like some Smart Eye foldable units) is ideal. For general repairs, a 1080P camera (like on the
MC75T
) is sufficient.
Work area: Models with foldable and rotatable heads provide maximum flexibility for viewing awkward angles, while those with articulating arms are better for maneuvering the microscope away from the work area completely.
Accessories: Some listings include a camera, light, and stand, while others offer these components separately. Always check the specific package details when buying
