Mechanic ROBOT Z4 Microscope

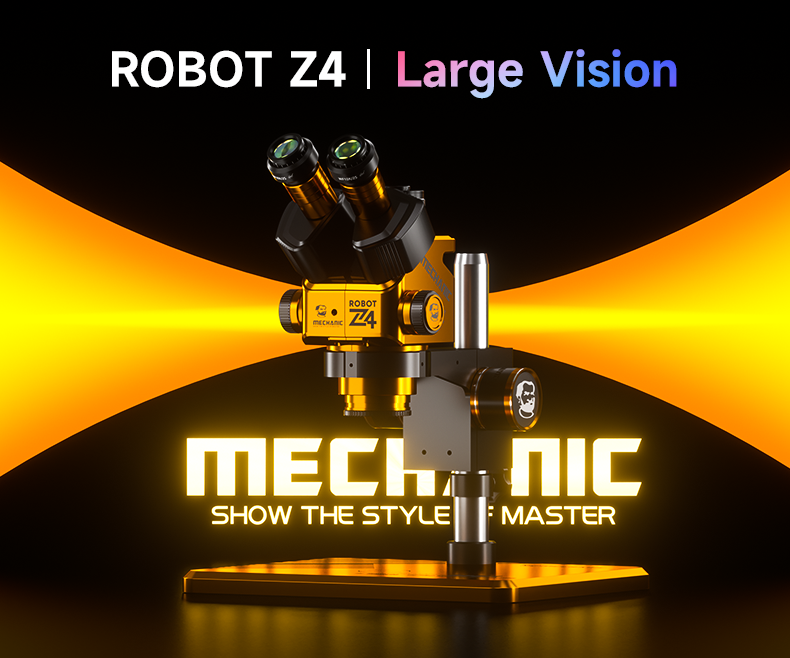

ROBOT Z4 MICROSCOPE

The MECHANIC ROBOT Z4 is a

trinocular stereo microscope designed for electronics repair, specifically for microsoldering, printed circuit board (PCB) inspection, and other precision tasks. It is known for its wide magnification range and compatibility with digital cameras.

Key features

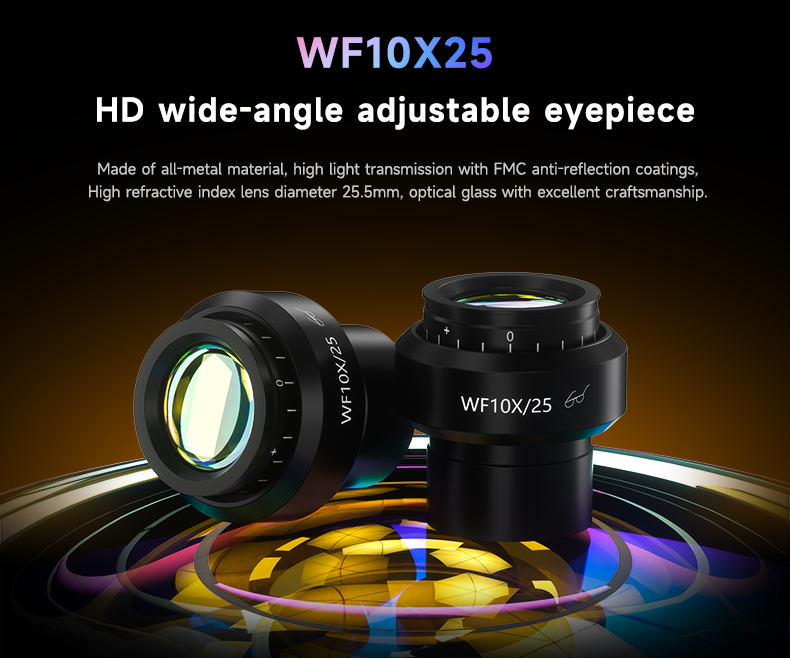

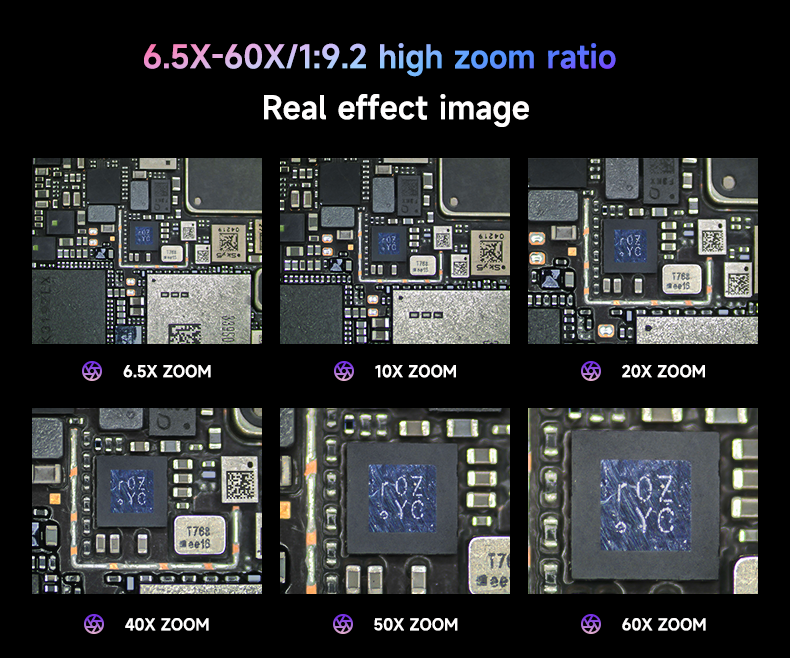

• Magnification and optics: The microscope offers a 6.5X to 60X continuous zoom magnification range. It is equipped with WF10X/25 high-definition, wide-angle adjustable eyepieces for clear imaging.

• Trinocular design: The three eyepieces allow for simultaneous binocular viewing and connection to a camera for digital capture or display on an external monitor.

• Camera compatibility: The

  ROBOT Z4

  includes a 0.45X camera adapter (CCD or CTV), which provides a wider field of view without dark corners when used with a digital camera. It can be paired with various high-definition cameras, including 4K models.

• Ergonomics and durability: The unit has an adjustable pupil distance (55-75mm) with a memory function for different users. It is built with a sturdy, all-metal alloy base for enhanced stability.

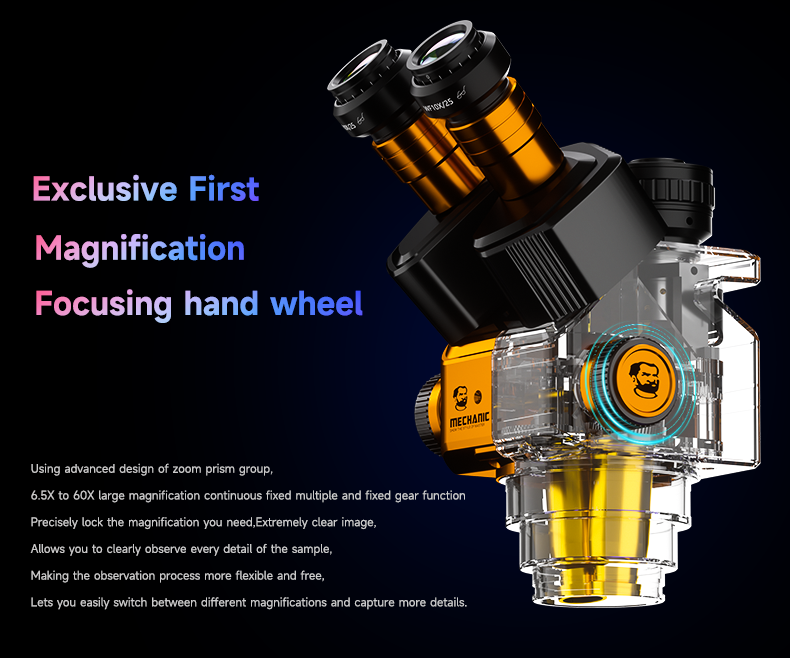

• Functionality for repairs: Key repair-specific features include a focus-lock handwheel for precise adjustments and a durable construction designed for intensive use in industrial and workshop environments.

Typical package contents

The

ROBOT Z4

is often sold as a comprehensive kit that can include:

• The microscope head

• A solid alloy base

• WF10X/25 eyepieces

• A 0.45X camera adapter

• An integrated ring light for even illumination

• Protective accessories like goggles and dust-proof lenses
