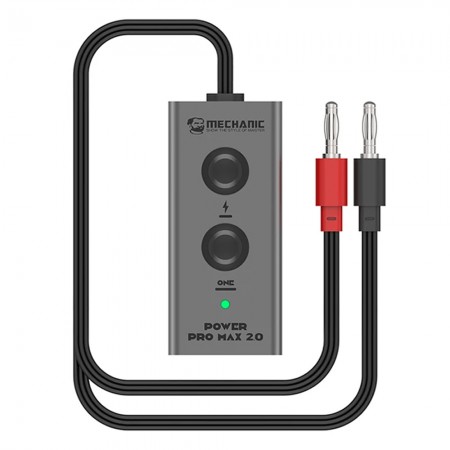

Mechanic Power Pro Max 2.0 Boot Cable X-16 series

₱2100.00

Out of stock

The Mechanic Power Pro Max 2.0 Boot Cable is a power supply cable used by mobile phone repair technicians to diagnose and repair issues with iPhones, specifically models from the iPhone X to the 16 Pro Max. This cable allows a technician to bypass the phone's battery to power on the device directly from a DC power supply.

Product features

According to product listings from retailers like DIYfixTool.com and Rich-Global.com, the

Mechanic Power Pro Max 2.0

has the following features:

  • Broad compatibility: Supports iPhone models X, XR, XS, XS MAX, 11, 11 Pro, 11 Pro Max, 12 series, 13 series, 14 series, 15 series, and 16 series.

  • One-click boot: Allows technicians to power on the phone's logic board with a single button, without needing to use tweezers for a short-circuit boot.

  • Stable power delivery: Features a double-layer printed circuit board (PCB) architecture and high-stability internal components.

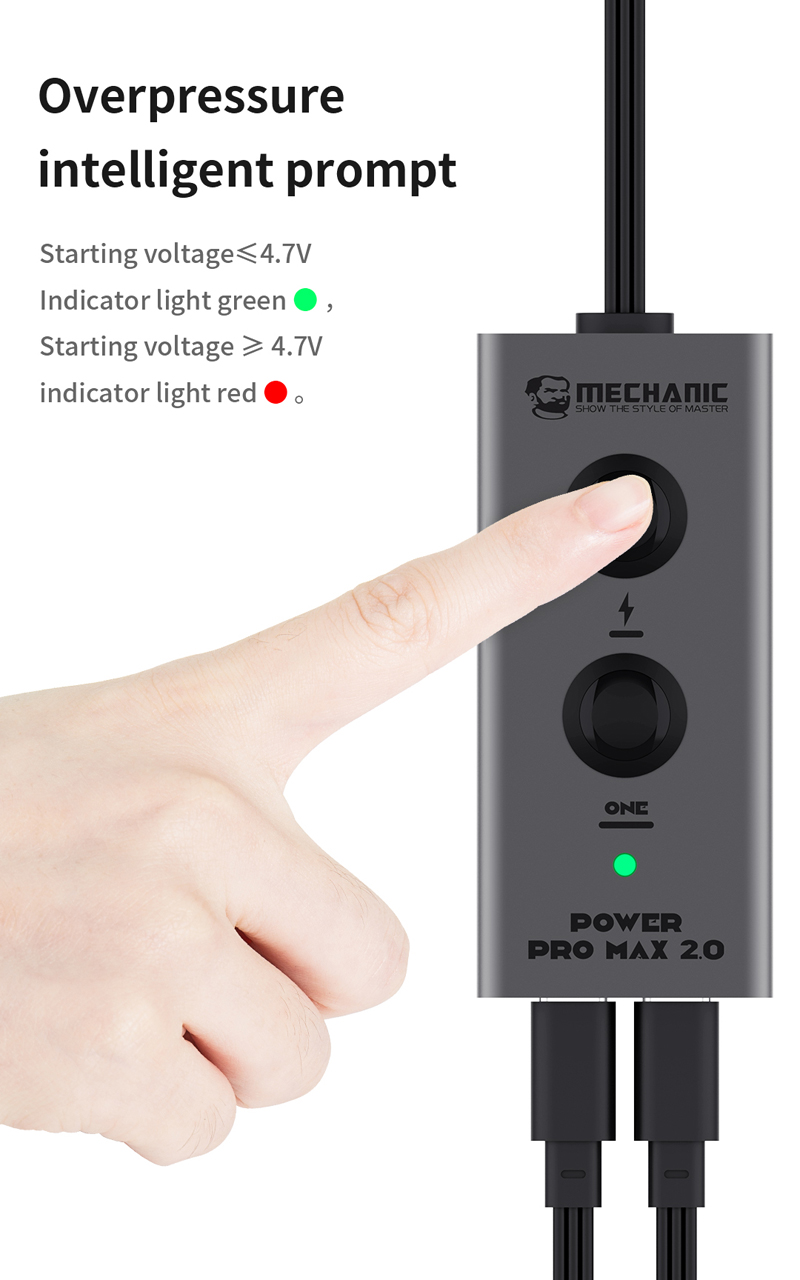

  • Overvoltage protection: The cable includes a smart prompt feature that uses an indicator light to warn technicians of voltage issues. A green light indicates normal voltage (≤4.7V), while a red light indicates high voltage (≥4.7V) to prevent accidental burning.

  • Thick copper core: Uses a thicker copper wire core for lower resistance and more accurate current detection.

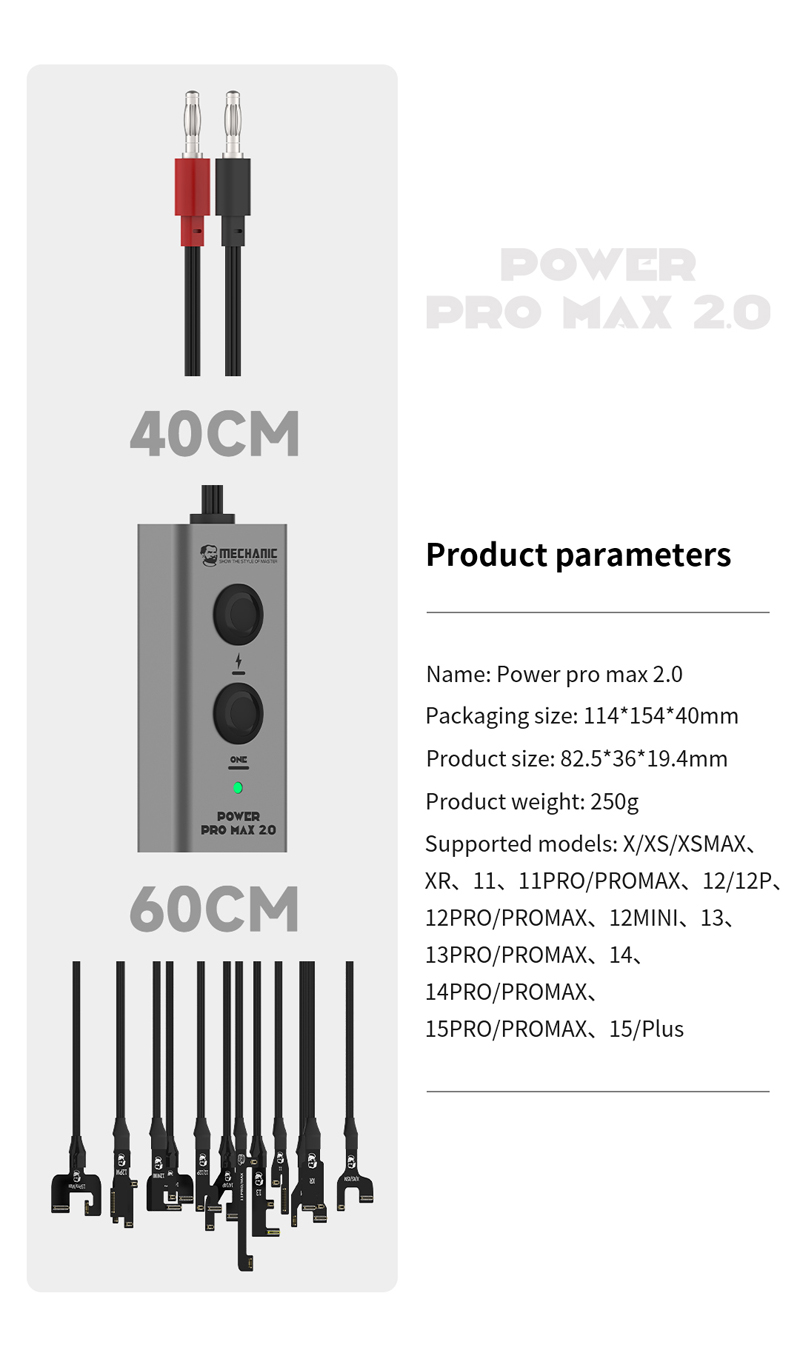

  • FPC connectors: Comes with 15 flexible printed circuit (FPC) connectors to fit a wide range of iPhone battery connectors.

How it is used in mobile phone repair

For technicians, a boot cable is an essential diagnostic tool for testing and repairing devices that won't turn on.

  • Isolating battery issues: By connecting the phone directly to a power supply with the boot cable, a technician can determine whether the power-on problem is caused by a faulty battery or a damaged logic board.

  • Power consumption analysis: When connected to a DC power supply, the cable allows technicians to monitor the current consumption of the device. Anomalies in the current draw can help diagnose various motherboard issues.

  • Safe and efficient testing: The cable's built-in protections, such as overvoltage and overcurrent protection, help prevent damage to the phone during the repair and diagnostic process.
