Mechanic POWER FPC BOOT CABLE

MECHANIC Power PCB Mobile Phone Power Boot Cable

A MECHANIC Power PCB Mobile Phone Power Boot Cable is

a specialized diagnostic tool used by technicians to power on a mobile phone without its internal battery. It connects the phone's logic board directly to a regulated DC power supply, allowing for precise voltage and current monitoring during the boot process. This helps technicians quickly and safely diagnose power-related issues.

Key features and applications

• Battery simulation: By bypassing the phone's battery, the boot cable simulates a known-good power source. This is crucial for diagnosing issues like a faulty battery, a non-responsive power button, or problems with the motherboard's power management circuitry.

• Fault diagnosis: A technician can use the boot cable in combination with a DC power supply to monitor the current draw of the phone during startup. Abnormal current patterns can reveal the location of a short circuit or other issues on the logic board.

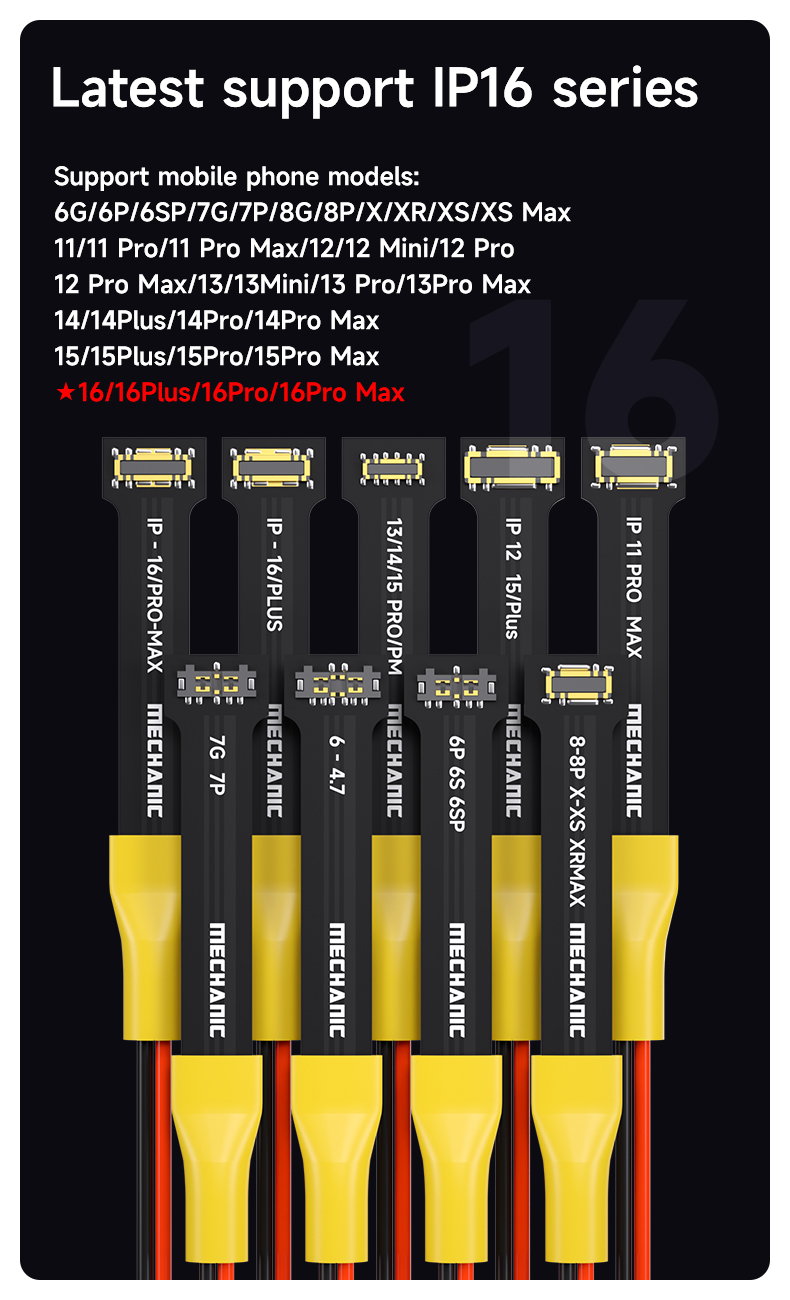

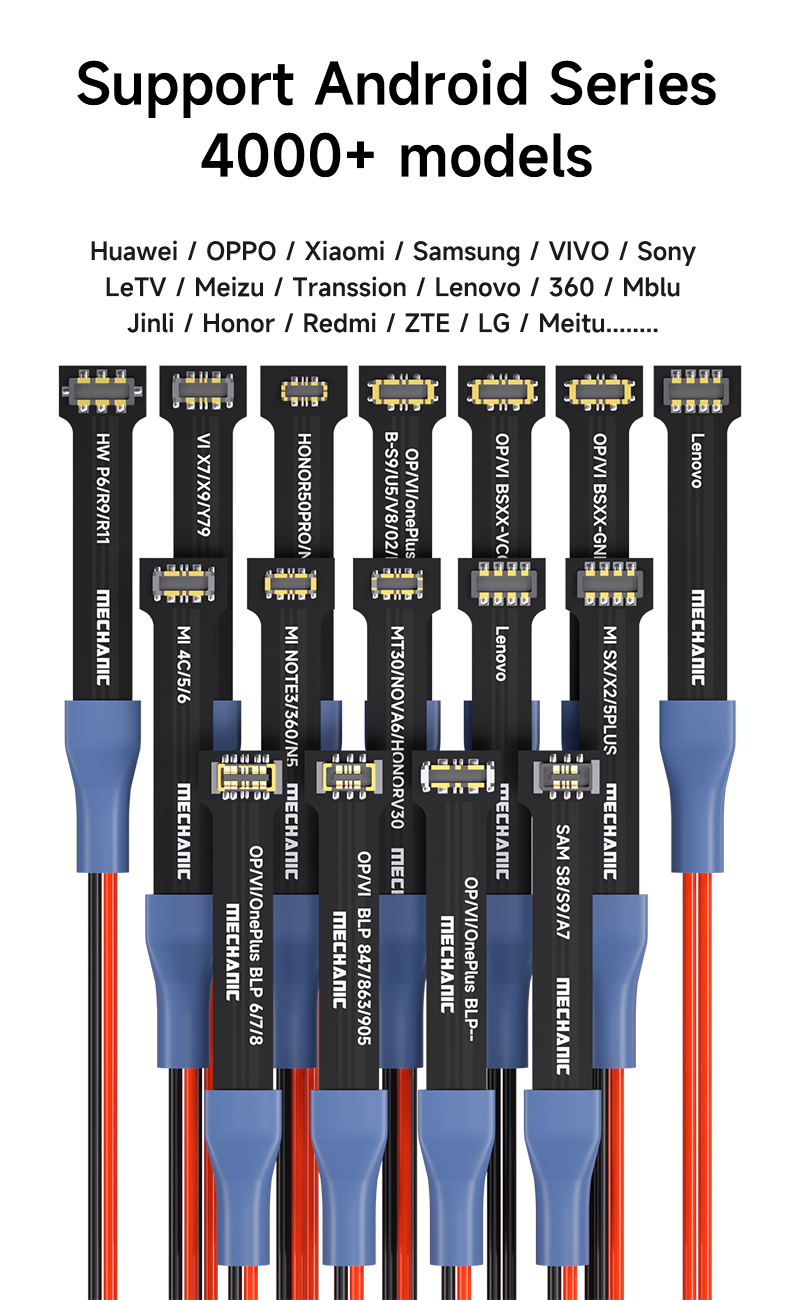

• Universal compatibility: A single boot cable kit often comes with a variety of connectors to support a wide range of devices. Many MECHANIC cables are designed to work with both iPhone (e.g., from iPhone 6 to 16 Pro Max) and numerous Android brands (e.g., Samsung, Huawei, Xiaomi, OPPO).

• Integrated safety features: Modern versions of these cables often include built-in safeguards, such as automatic anti-burning protection. This feature detects and cuts off power if the voltage exceeds a safe level, protecting the phone from potential damage caused by a high-voltage short.

• Improved efficiency: For a technician, using a boot cable significantly speeds up the repair process. It allows for quick testing and troubleshooting of a device's logic board without waiting for a new battery to arrive or charging a possibly faulty one.

How it works

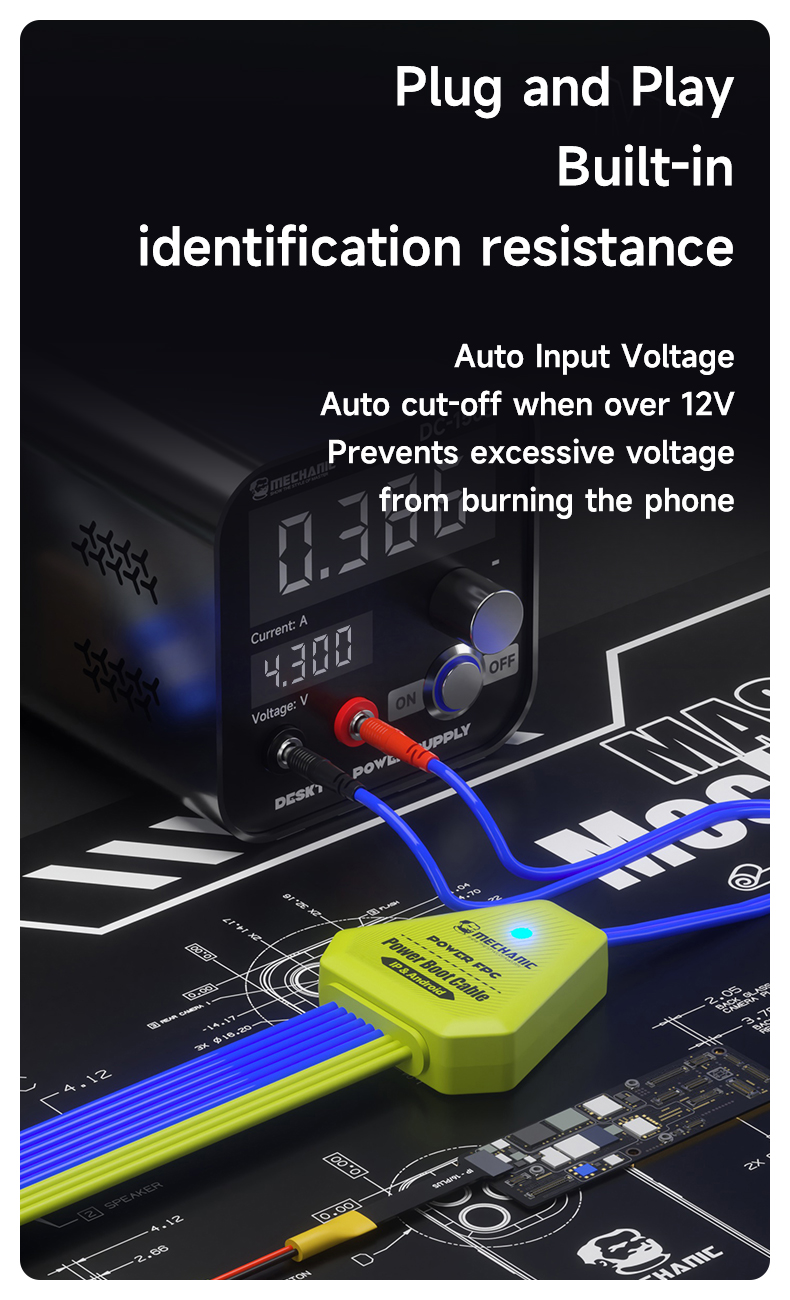

1. Connect the boot cable to a regulated DC power supply using the included alligator clips.

2. Set the power supply to the appropriate voltage for the phone you are testing (e.g., 3.85V for many smartphones).

3. Select the correct connector (also known as a "seat buckle") from the cable kit and plug it into the phone's battery connector on the logic board.

4. Activate the power supply and, using a tool like a spudger, press the phone's power button to trigger the boot sequence.

5. Observe the current and voltage readings on the DC power supply to analyze the phone's behavior. An abnormal reading can indicate a problem.
