Mechanic MP-2405 Power supply
₱3800.00
Out of stock
Mechanic MP-2405

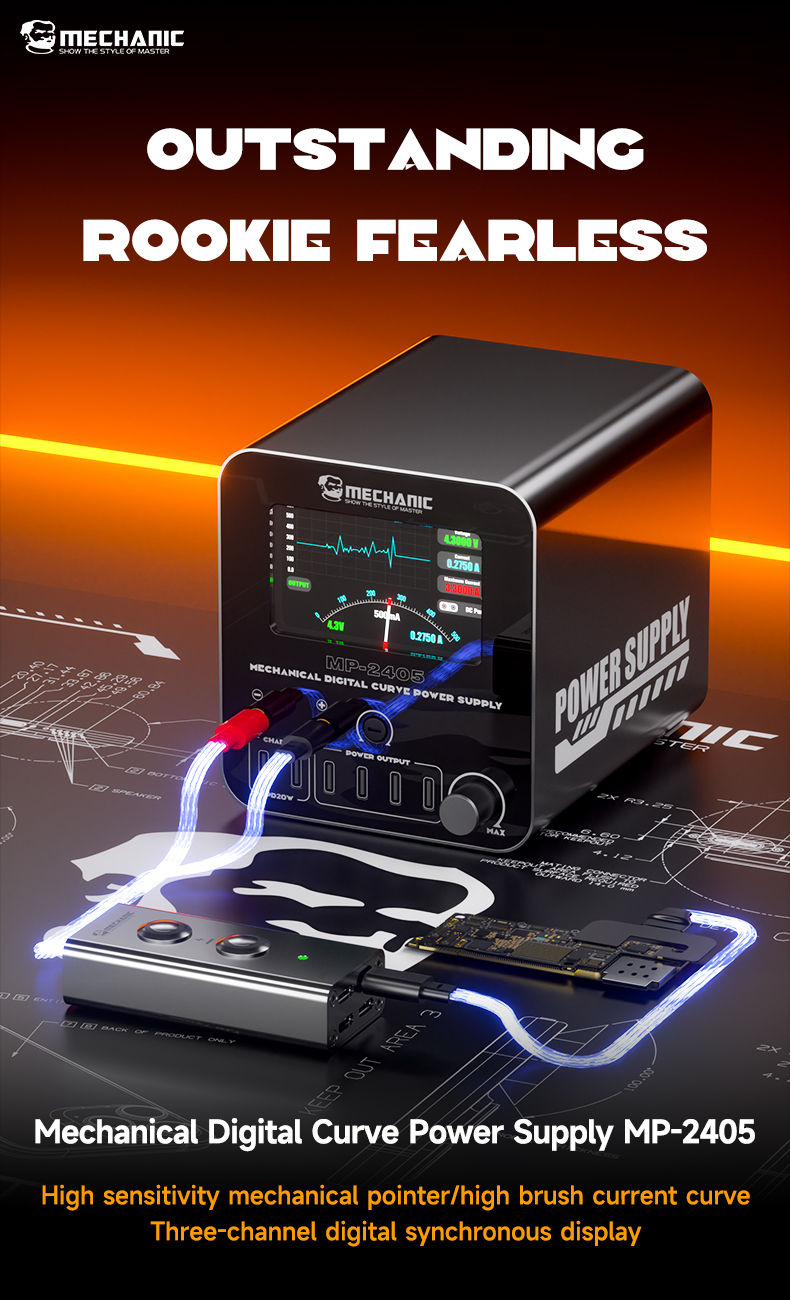

The Mechanic MP-2405 is a
digital DC power supply designed for electronic device repair, particularly for mobile phones. It is manufactured by the brand Mechanic, and it features an adjustable voltage and current output along with multiple output ports.
Key features and specifications

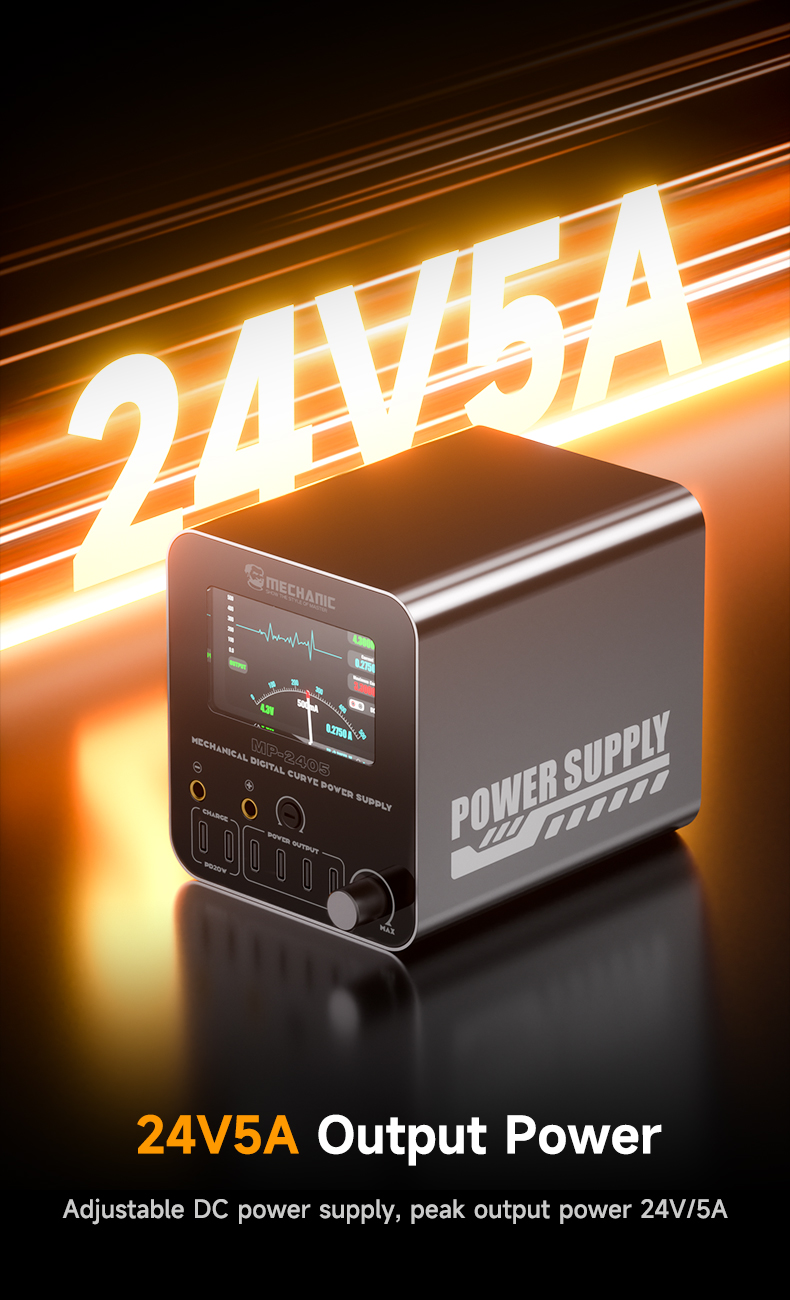

Voltage and current: It provides an adjustable DC output voltage from 0 to 24V and a maximum continuous current of 5A, with a peak of 7A for up to one second.
Power: The maximum output power is approximately 120 watts.
Display and interface:
It features a 3.2-inch TFT screen that displays real-time voltage, current, and charging power.

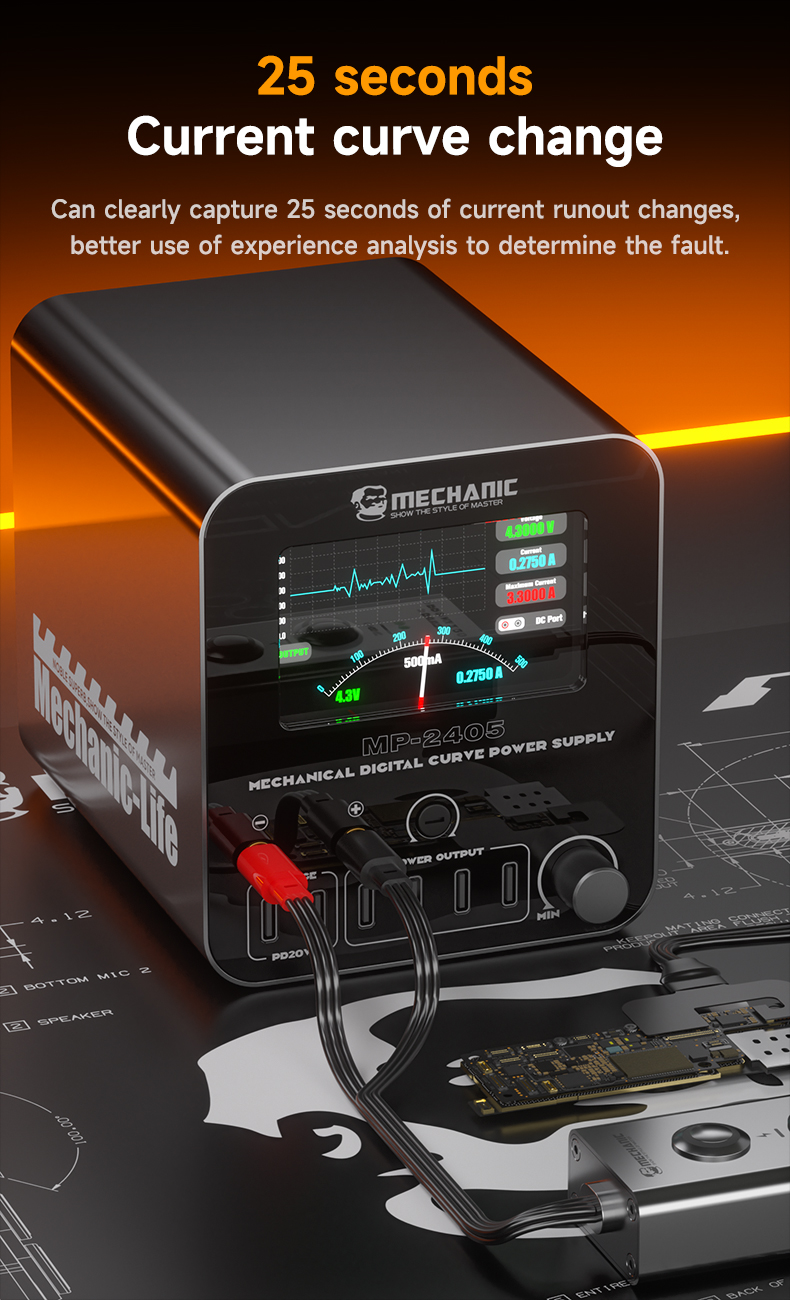

A unique feature is its "digital curve" function, which shows a graph of current changes over a 25-second period. This helps technicians analyze device faults.

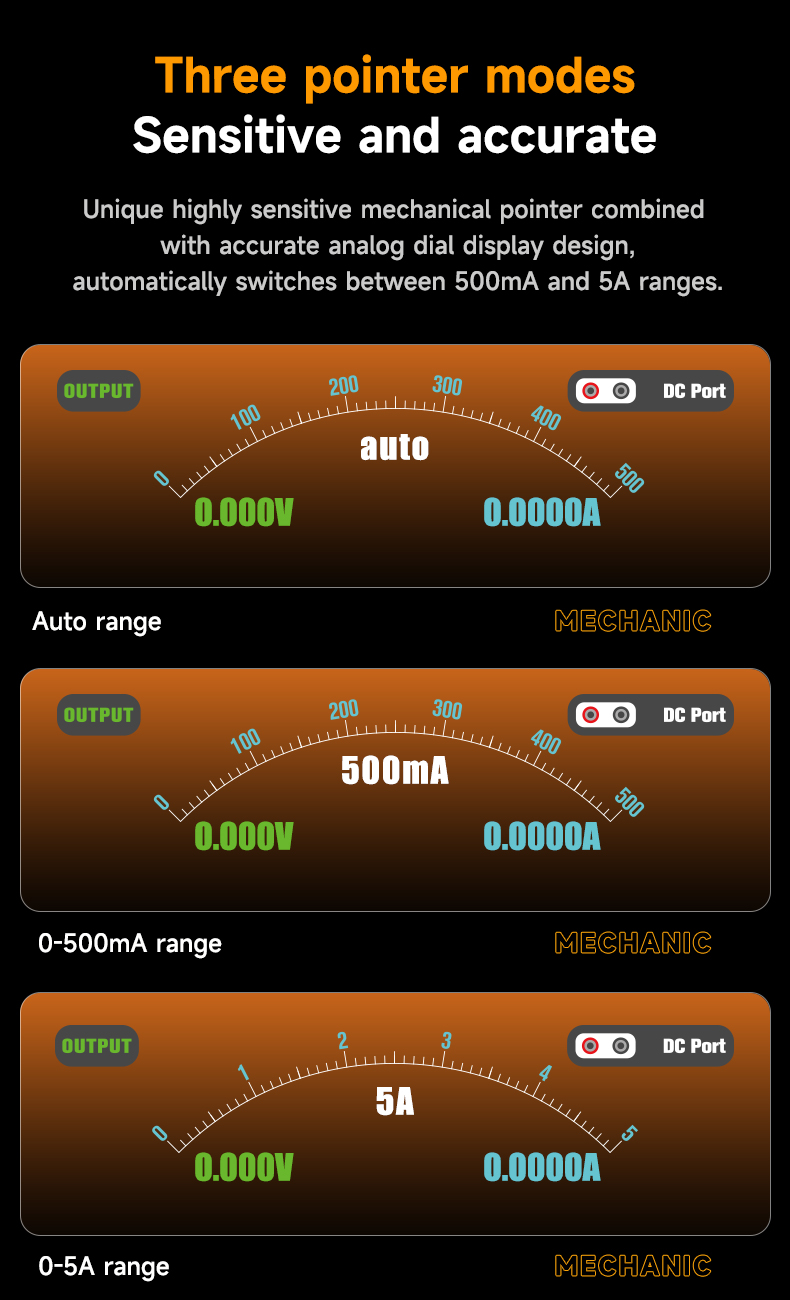

It also includes a sensitive mechanical pointer meter that works in three different modes, automatically switching between 500mA and 5A ranges.
Multi-port output: The device is equipped with multiple charging and power output ports, including:
Two PD3.1 fast charge ports
Four USB-C power output ports
Intelligent protection: To ensure the safety of both the device and the load, the
MP-2405
has built-in protection mechanisms for overcurrent, overvoltage, and short circuits.
Cooling system: An all-metal body and an intelligent temperature-controlled fan are used for heat dissipation, preventing the device from overheating during high-power operation.
Physical dimensions: The power supply has a compact size, with dimensions of 125 x 98 x 110 mm.
