MECHANIC LS720 Microscope Polarization Ring Lamp

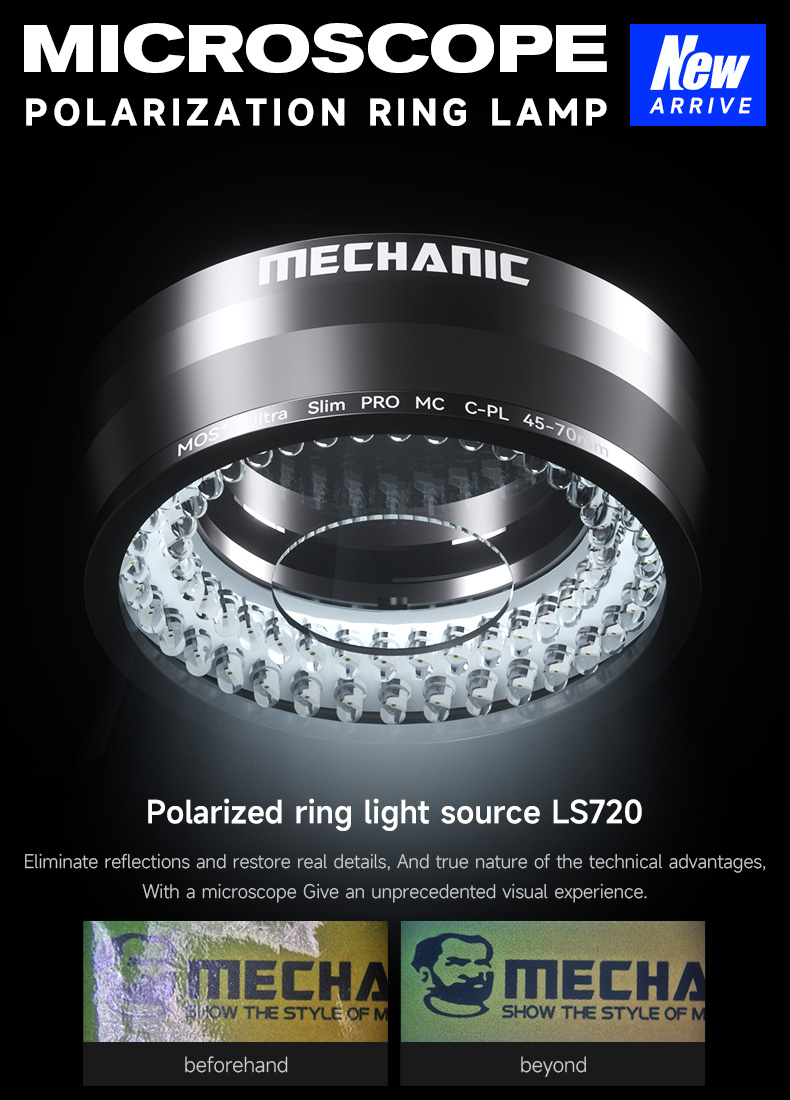

The MECHANIC LS720 microscope polarization ring is an adjustable LED ring light designed for stereo microscopes, particularly for soldering and precision repair work. It uses dual-polarization technology to eliminate glare and reflections from shiny surfaces, enhancing image clarity and detail.

Key features

• Dual-polarization lenses: Uses advanced polarization filters that can be rotated to eliminate glare and reflections from metallic or shiny objects, revealing details that would otherwise be obscured.

• 72 high-brightness LEDs: The ring light contains 72 LED lamp beads that provide bright, consistent, and uniform illumination with a color temperature of 8000–11000K.

• Stepless brightness adjustment: Features a knob for continuous, stepless control over the brightness from 0 to 100%, allowing the user to adapt the lighting to different needs.

• Nanoscale coating: The optical lenses have a nanoscale coating that precisely controls light reflection on the surface, further reducing interference and making the light more pure and stable.

• Durable aluminum alloy shell: The unit's all-aluminum alloy casing provides excellent heat dissipation to prevent overheating and ensure stable, long-term operation.

• Enhanced visual experience: By minimizing eye strain and improving contrast, the polarized light offers a more comfortable and detailed viewing experience for intricate tasks.

How the LS720 polarization ring works

The polarization ring and its filters function similarly to those used in polarized light microscopy, which controls the direction of light waves.

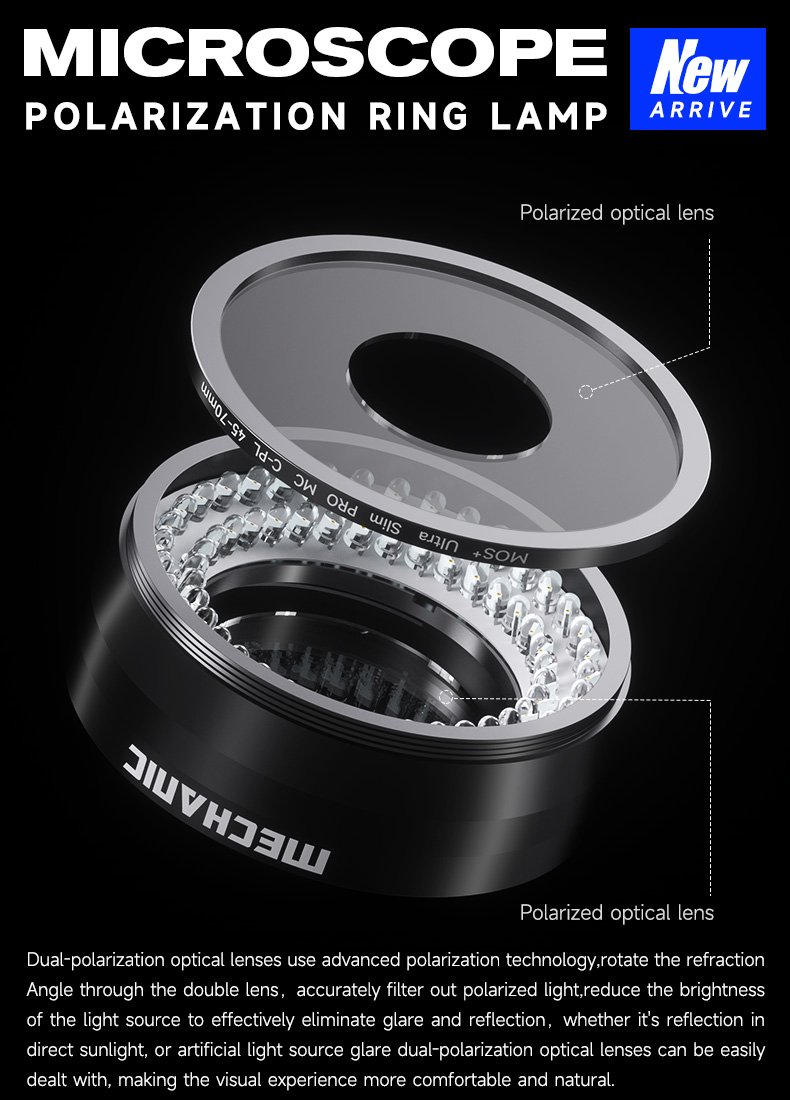

1. The polarized ring light contains two key filters: the polarizer and the analyzer.

2. The polarizer is a filter positioned inside the ring light.

3. The analyzer is a second filter built into the outside of the ring's housing that can be rotated.

4. By rotating the analyzer, the user can change the polarization angle and "cross" the filters. This reduces or eliminates the light waves that reflect and create glare from the specimen.

5. This process reveals details in reflective samples, such as circuit boards, metallic parts, or solder joints, that are otherwise difficult to see.

Benefits for precision repair and inspection

The

MECHANIC LS720

is popular for electronics repair because it provides a significant advantage when working with reflective materials, such as those found on mobile phone motherboards. The ability to remove glare allows technicians to clearly see fine details, enabling more accurate and efficient soldering and component inspection
