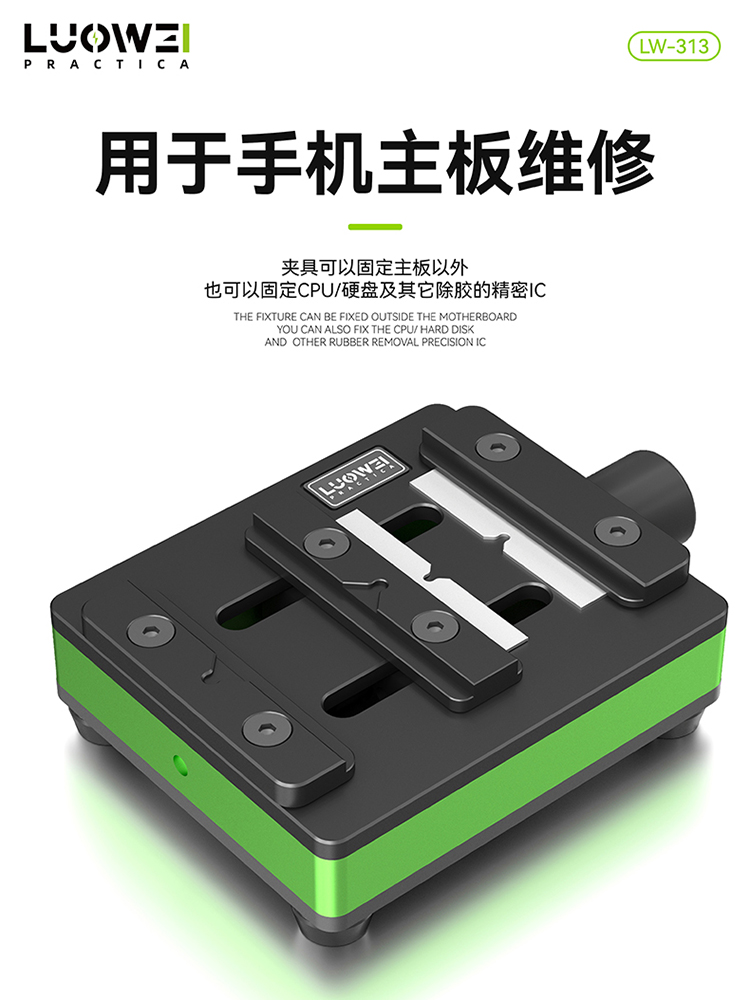

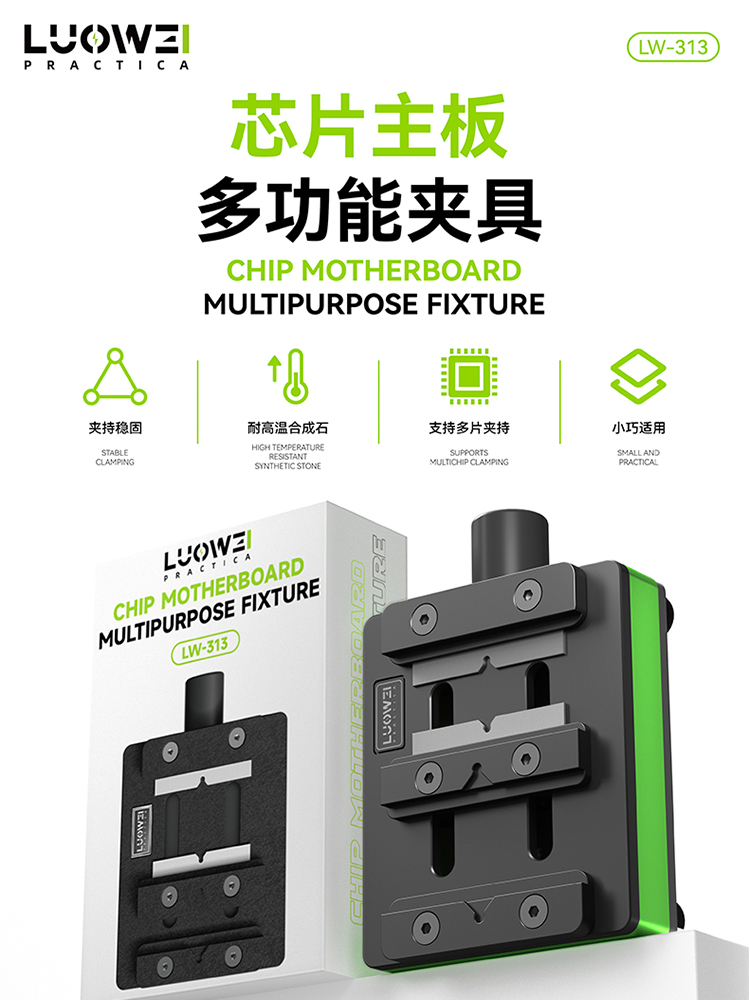

LUOWEI LW-313 Mini Motherboard Clamp fixture

The LUOWEI LW-313 Mini Motherboard Clamp fixture is a universal, high-temperature-resistant fixture used for securing small circuit boards, integrated circuit (IC) components, and mobile phone chips during repair and soldering work. It is particularly useful for precision tasks performed under a microscope.

Key features

• Universal compatibility: Designed to hold a wide range of mobile phone and computer motherboards, as well as IC components like CPUs and hard drives.

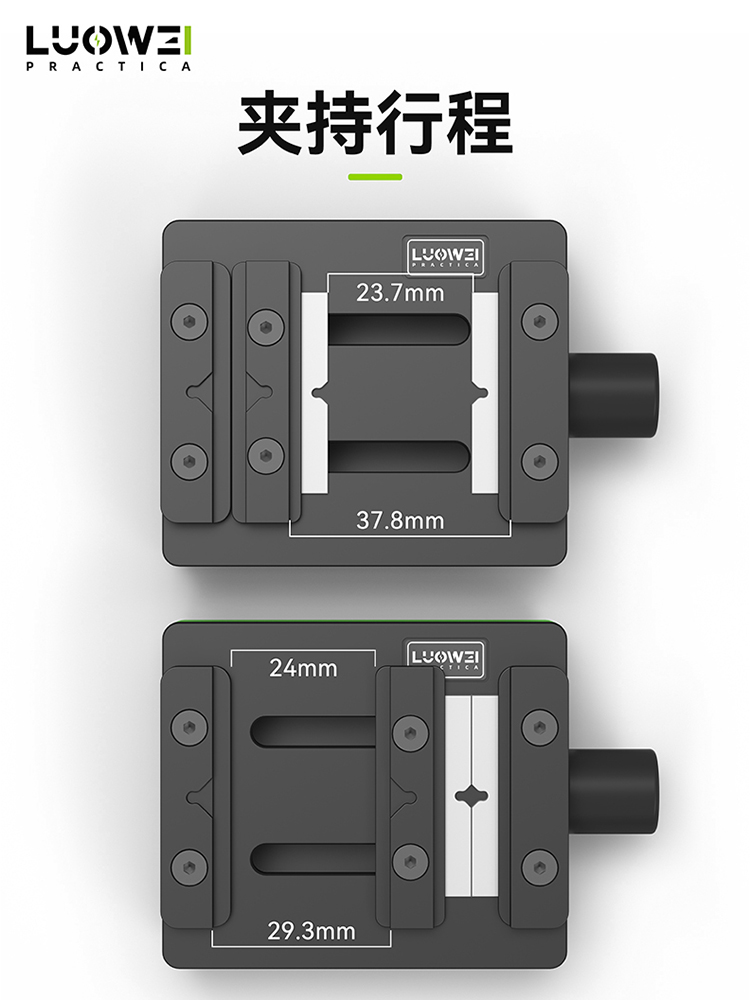

• Adjustable clamping: The fixture features an adjustable mechanism that allows it to securely grip different sizes and shapes of components. It has a 51mm clamping area for stability.

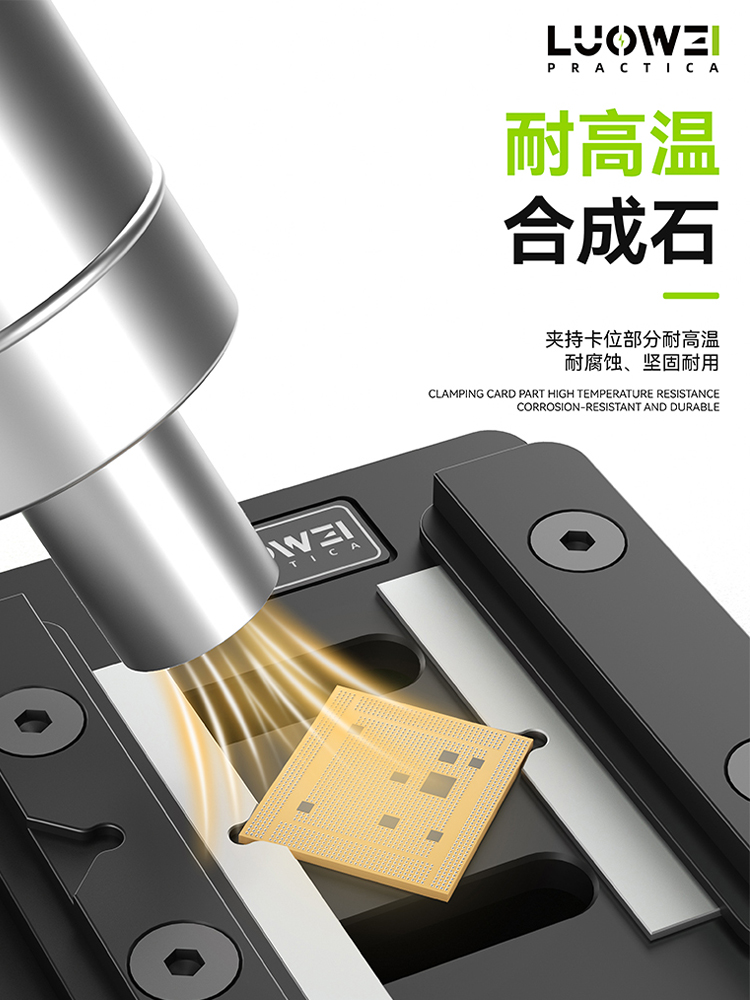

• High-quality materials: Constructed from high-strength, durable, and corrosion-resistant silicone and metal materials. The silicone provides excellent heat resistance, protecting hands during high-temperature work.

• Precision design: Engineered to ensure accurate and stable positioning of components, which is crucial for intricate microscopic inspection and repair tasks.

• Versatile use: The fixture can be used to hold components for a variety of tasks, including microsoldering, chip removal, and reballing.

How it works

The LW-313 uses a series of movable clamps and fixed points to hold a component in place. The adjustable clamping area allows the user to configure the fixture to the specific dimensions of the motherboard or chip. This firm grip prevents the component from shifting during delicate work, making the repair process more efficient and precise.
