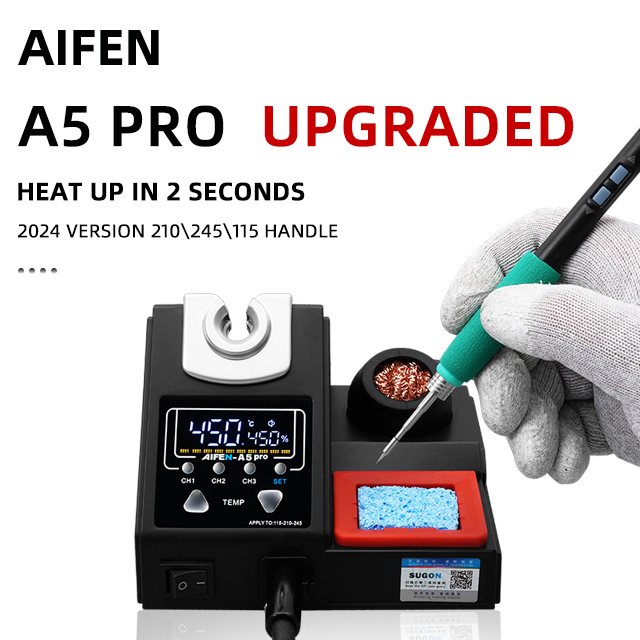

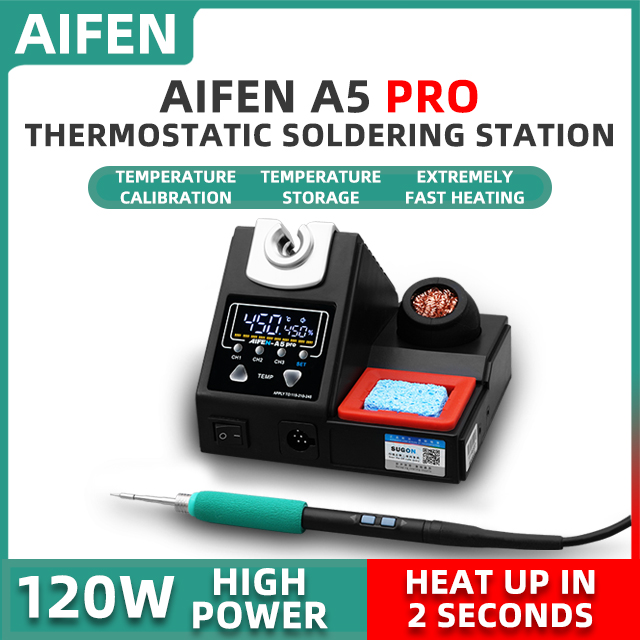

AIFEN A5Pro 120W Soldering Station

₱3000.00

The AIFEN A5 Pro is a 120W smart soldering station known for its

rapid heating, compatibility with multiple handle and tip types, and various user-friendly features. It is a popular, affordable choice for both hobbyists and professional technicians, particularly for electronics repair.

Key features

High power output: With a maximum output of 120W (some sources list a peak of 160W), the
A5 Pro
delivers fast, efficient heating. It can melt tin in as little as 2 seconds from standby mode.
Programmable chip control: Unlike traditional soldering stations that use AC voltage control, the
A5 Pro
uses a programmable chip to regulate temperature. This results in faster, more accurate temperature management and recovery.

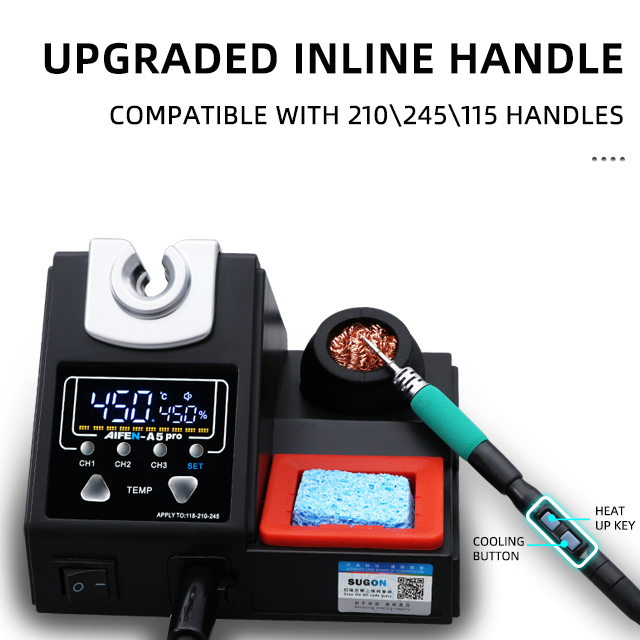

Broad tip and handle compatibility: The station is compatible with a range of handles and tips, including the C115, C210, and C245 types. It is also compatible with JBC soldering iron tips.
Automatic sleep function: The iron stand features a magnetic induction sleep function. When the handle is placed in the stand, it automatically enters sleep mode to conserve energy and prolong tip life. Lifting the handle instantly wakes it up.
Temperature memory: The station includes three memory channels, allowing users to save and quickly recall their most used temperature settings.
Safety features: Built-in features include mechanical short-circuit protection, which automatically shuts down the machine if a short is detected.
User-friendly display: The LCD screen shows the temperature in real-time, along with a heating percentage and power bar display.
Calibration: The unit supports temperature calibration, which is useful when replacing soldering tips.
Dual voltage support: It has a universal input voltage compatible with both AC 110V and 220V.

Typical package contents

Standard packages of the AIFEN A5 Pro typically include:

A5 Pro soldering station host
A soldering handle (often a C245 or C210 is included by default)
A set of three compatible soldering tips (e.g., straight, bent, and blade)
User manual
