861 Diagonal Air Gun Nozzle set

An 861 diagonal air gun nozzle set is a series of angled nozzles designed for hot air rework stations. They are commonly used for fine and precise soldering and desoldering on small, complex electronic components like those on printed circuit boards (PCBs).

Compatibility

The "861" in the name indicates compatibility with hot air rework stations in the "861" series, such as the

Quick 861DW

or

861DW Pro

.

Key features and uses

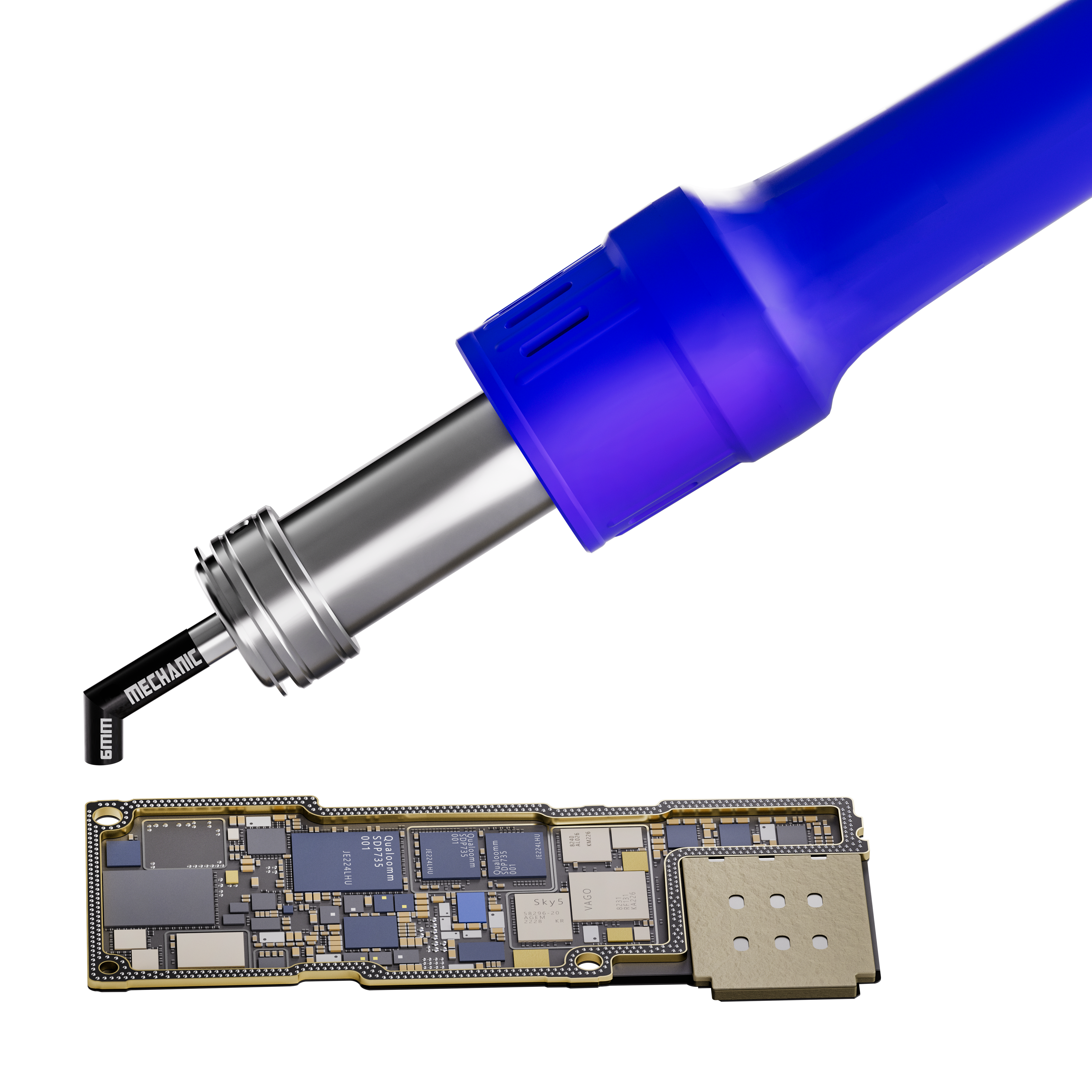

• Access hard-to-reach areas: The 45-degree angled or "diagonal" design allows technicians to work on components located in tight or obstructed spaces.

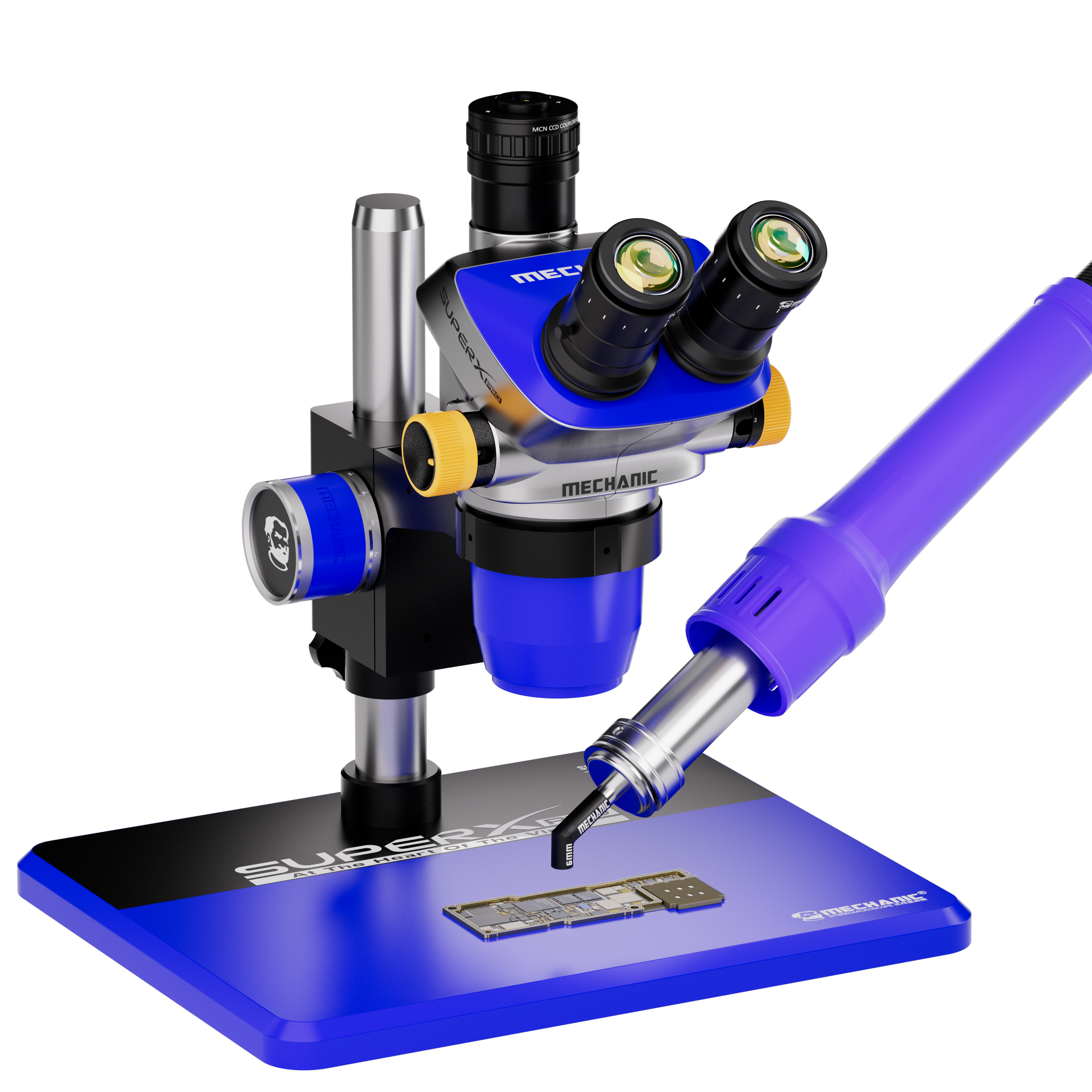

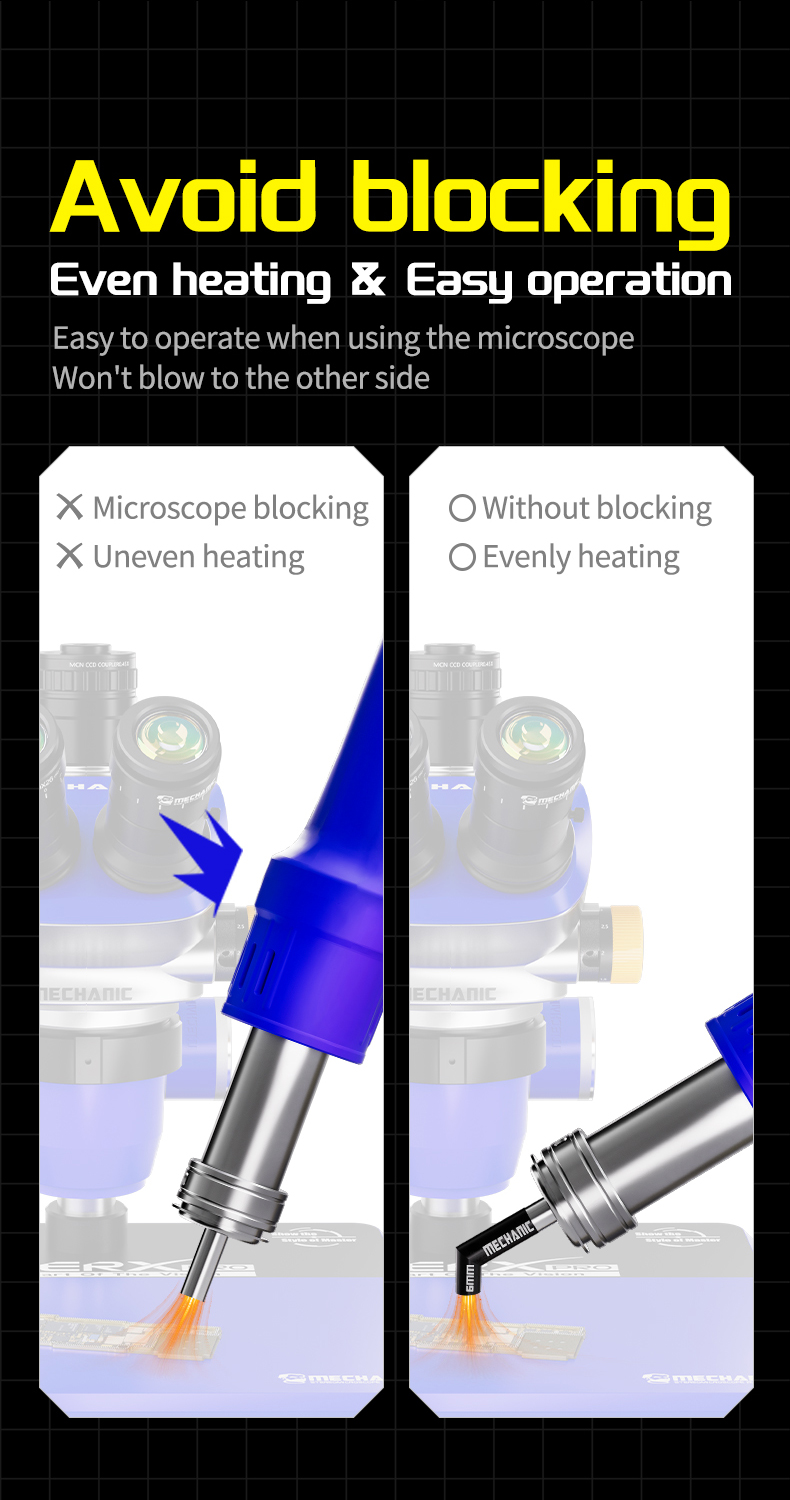

• Microscope work: The angled nozzles prevent the hot air gun's body from obstructing the view when working under a microscope, allowing for precise and accurate operations.

• Even heating: The design helps to evenly distribute heat across the component, which prevents localized overheating and potential damage to sensitive parts.

• PCB and component repair: These nozzles are essential for tasks like welding and repairing BGA (Ball Grid Array) packages, IC chips, and other intricate parts on motherboards.

• Multiple sizes: Sets typically include nozzles of various diameters (e.g., 5, 6, 8, 10, and 12 mm) to provide flexibility for different applications.

• Durable construction: They are typically made from heat-resistant materials like high-quality stainless steel to prevent air leakage and ensure longevity.
