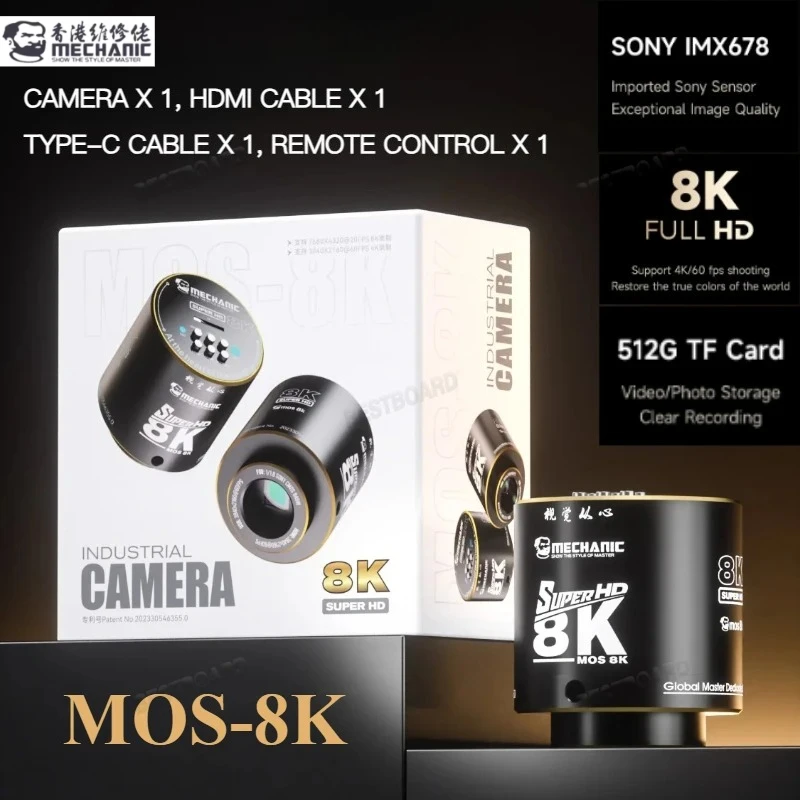

MECHANIC MOS-8K Microscope Camera 8K 4K HDMI USB Output
₱7800.00
Out of stock
The MECHANIC MOS-8K is a 41-megapixel, ultra-high-definition (UHD) industrial microscope camera featuring dual HDMI and USB outputs. Primarily designed for professional and electronics repair, it offers high-resolution image capture and video output for a detailed view of microscopic components.
Key features

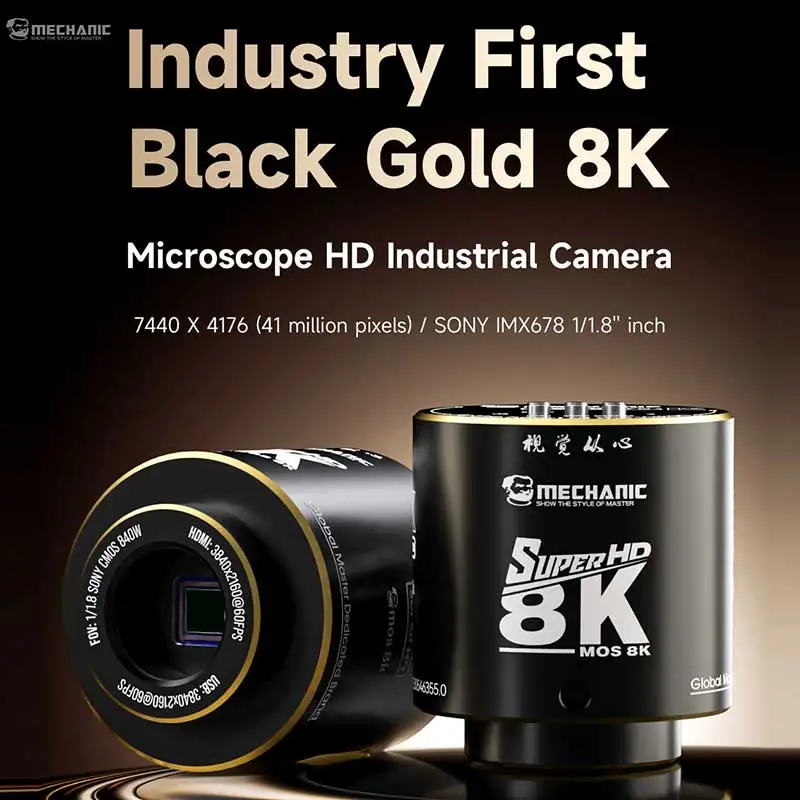

Sensor: The camera uses a SONY CMOS IMX678 1/1.8-inch sensor, which provides high sensitivity and accurate color reproduction.

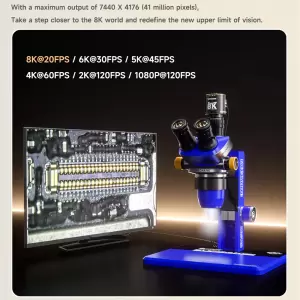

Resolution: It captures still images at 41 megapixels, with a resolution of 7440 x 4176. A super-resolution algorithm enhances visual output to simulate an 8K viewing experience, particularly for static or slow-moving scenes.
Video output: The
offers a variety of video resolutions and frame rates, including:
HDMI:
8K@20FPS
4K@60FPS
1080P@120FPS
USB:
4K@60FPS
1080P@120FPS
Connectivity: It provides dual output with HDMI and USB, allowing for flexible connection to a computer, monitor, or other display devices. A fast Type-C port supports 4K/60FPS transmission with minimal latency.
Storage: A built-in TF card slot supports high-capacity storage of up to 512GB for photos and videos.
Ease of use:
C-Mount lens interface: The camera features a standard C/CS mount, making it compatible with most trinocular microscopes or C-mount adapters.
Remote control: An included remote allows for easy adjustment of settings.
Multi-language support: The user interface offers support for multiple languages.
Additional functions:
Freeze function: A "freeze" button allows you to pause the live feed, with options for freezing the full screen, the left half, or the right half.
Image adjustment: The camera offers automatic and manual white balance and digital zoom to optimize image quality.
Intended use
The MOS-8K is built for industrial and professional use cases that require extreme detail, such as:
Mobile phone repair
Circuit board (PCB) inspection
Welding of small components
BGA chip and motherboard repair
