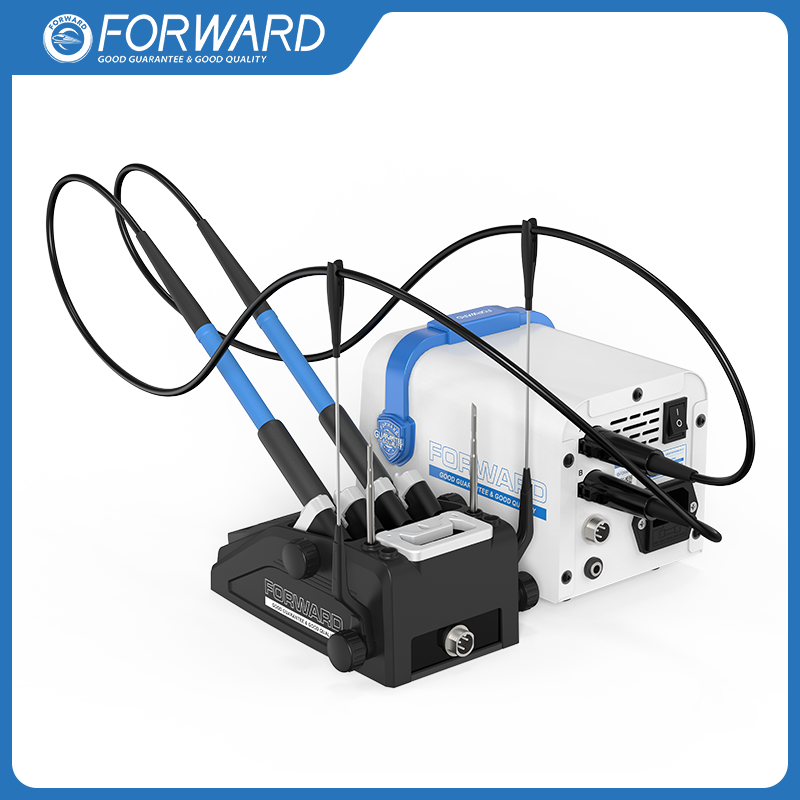

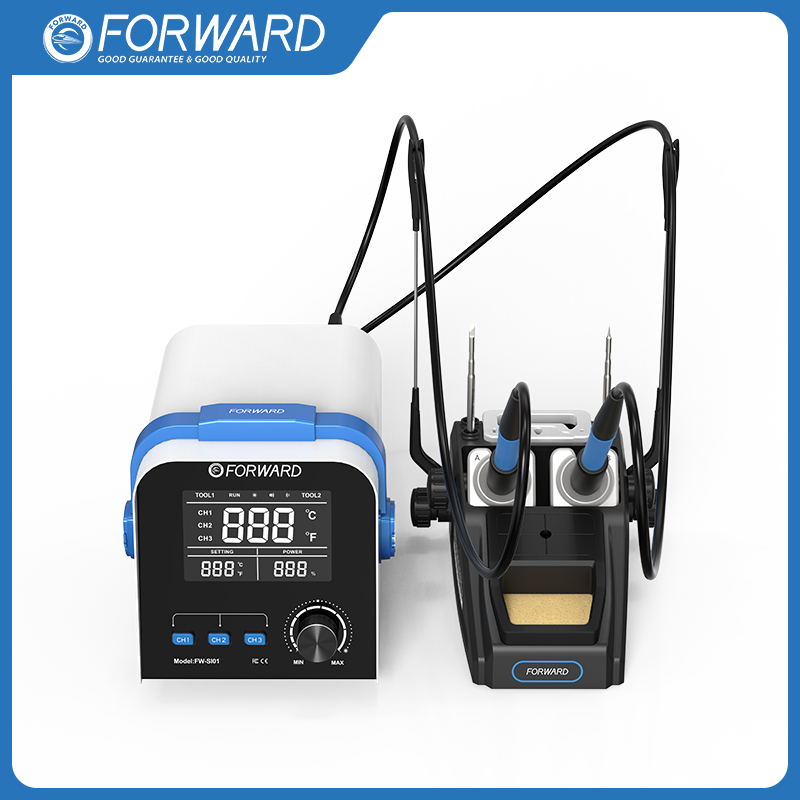

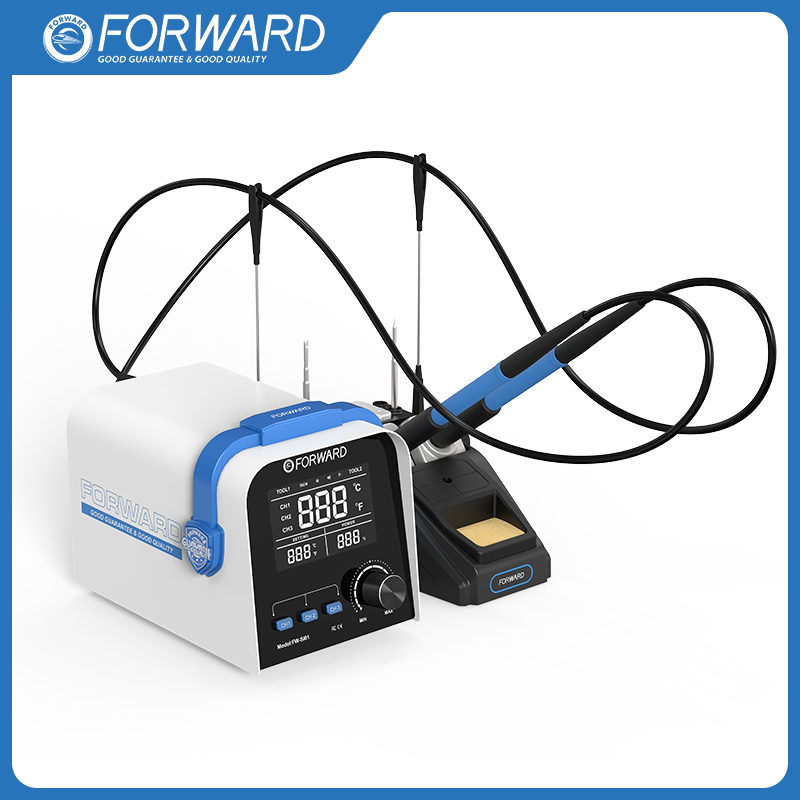

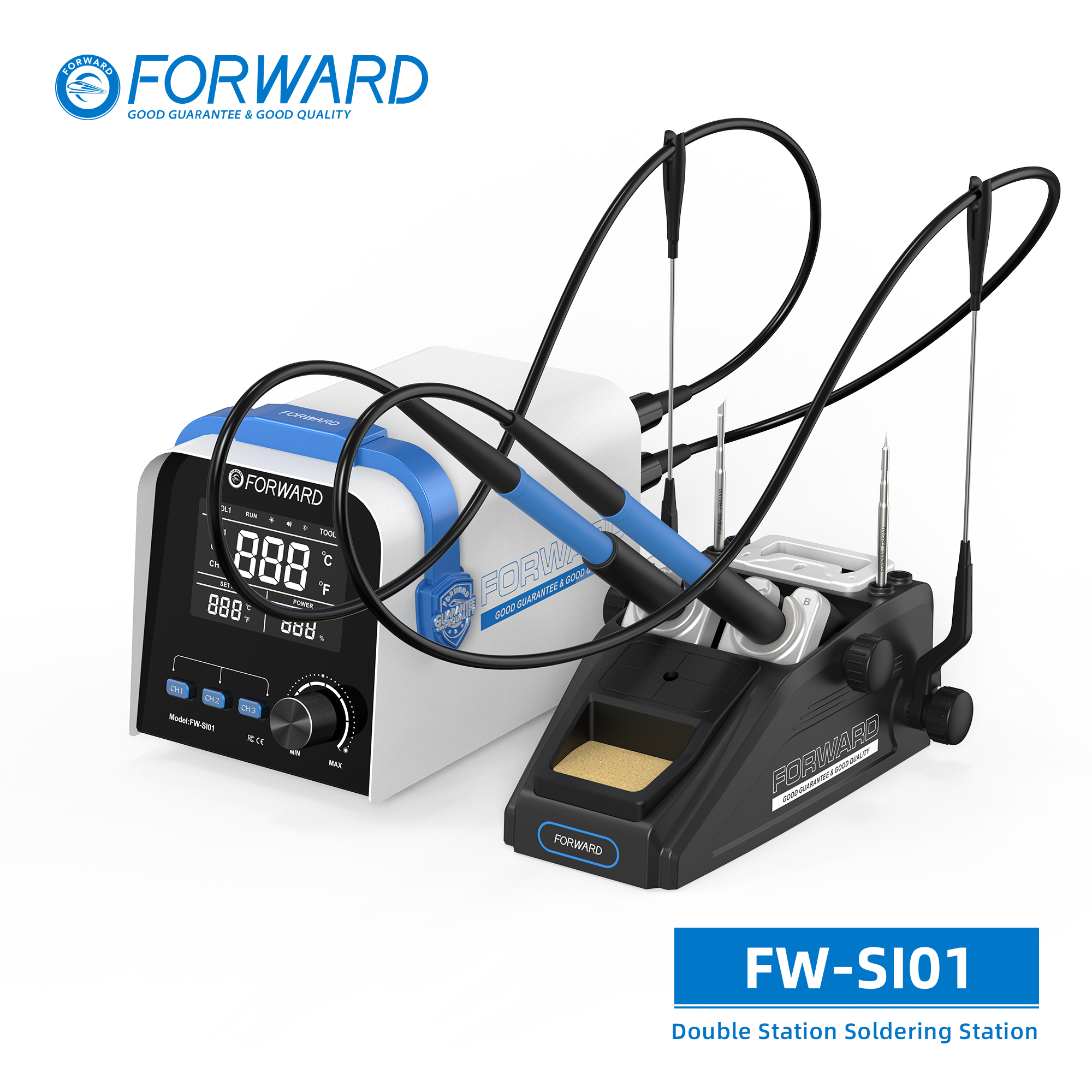

FORWARD FW-SI01 High power double handle soldering station

The FORWARD FW-SI01 is a high-power, double-handle soldering station designed for electronics repair, specifically micro-soldering tasks such as mobile phone and PCB repairs. Its dual-handle design and high-power output make it efficient for professional-level work.

Key features

• Double workstation design: The unit features two ports and supports both C210 and C245 type soldering handles. This allows for quick switching between different handles or tips without having to unplug and wait for a single handle to cool down.

• High power: With 300W of power, the station provides rapid heating and stable, accurate temperature control. The use of high-quality, imported heating cores further ensures fast and precise performance.

• High-precision temperature control: The station uses a closed-loop sensing system, where the sensor and heating element are integrated into one unit for stable and precise temperature readings. It has a temperature range of 200℃ to 450℃ with an accuracy of ±3℃.

• Three-channel presets: Users can store up to three different temperature settings for quick and convenient recall, improving workflow.

• Automatic sleep mode: An energy-saving feature, the station automatically enters a low-power sleep mode after a period of inactivity, which also helps extend the life of the heating elements.

• High-definition LCD display: The clear digital screen provides intuitive temperature readings for easy monitoring and control.

• Built-in cooling system: An internal cooling fan automatically activates when the station's internal temperature exceeds 45℃, helping to maintain optimal performance and prolong device lifespan.

Specifications

• Power: 300W

• Voltage: Universal 110V–220V

• Heating core compatibility: Type 210 and Type 245

• Temperature range: 200℃–450℃

• Constant temperature accuracy: ±3℃

• Dimensions: 11.3 x 17.2 x 11.7 cm (main unit)

• Weight: 2.0 kg (product weight) / 2.4 kg (packaged weight)

Use case and target audience

The FW-SI01 is geared toward electronics repair professionals and enthusiasts who require high performance and the efficiency of a dual-handle system for their projects. Its compatibility with both C210 (fine-tipped) and C245 (larger) handles makes it versatile for a variety of tasks, from delicate micro-soldering on circuit boards to larger component work.
